Specifications:
Unit (switchable): Kg, Lb, N
Capacity (optional): 2 T ,5T
Load Resolution: 1/100,000
Stroke (exclude the grips): 400 mm
Load Accuracy: ≤0.5%
Test Space (L×W×H): 1500×1500×1500mm
Speed of Compression: 10 ± 3 mm/min
Operation Mode: PC
Report Items: Serial number, Peak value, Average value, Designated holding pressure value; all memorable
Structure: AC Frequency Conversion Motor ( Taiwan); Imported screw rod ;4 sensors; LED display
Dimension (L×W×H): 2370×1500×2100mm (can be custom made)
Power: 1ø, 220v/ 50Hz
Weight: Approx. 850kg
Safety Devices: Overload protection, overvoltage protection & limited position protection device
Standard: TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642
1/ About the machine:

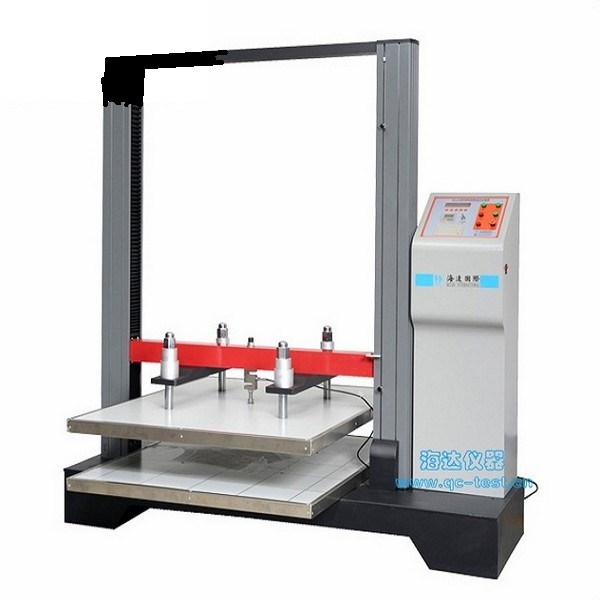

Computer Servo Box Compressive Testing machine is used for measuring the pressure strength of cartons,containers,etc, for inspecting the pressure-resistance and strike- endurance of packing materials during transportation or carry.
2/ Design criteria:
TAPPI-T804,JIS-20212,GB4857.3.4,
ASTM-D642, QB/T1048, BS EN ISO 12048,
GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,
GB/T4857.4
Specifications
1.High quality with reasonable price
2.One year free aftersale service
3.Easy operation
3/ Features of Computer Servo Box Compressive Testing maichine:
Computer Servo Box Compressive Testing maichine is using a single-screen operation; do not need to switch the screen;
With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
Choosing translational, comparative mode at the same time to make a number of curve data comparison;
With a variety of measurement units, Measure In Imperial & Metric are switchable;
With self-return & auto-correction function;
With automatic magnification function, in order to achieve the most appropriate size of the graphics;
With the user-defined Test methods; with experimental data analysis function;
Computer Servo Box Compressive Testing maichine can do test of compression, bending, pressure holding & fatigue.
With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.
