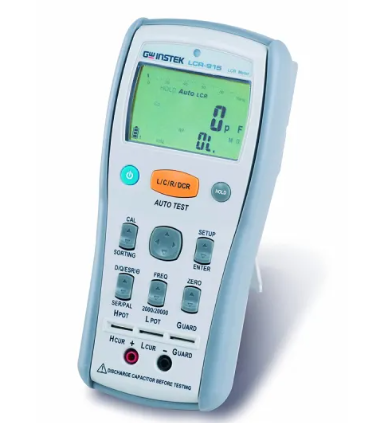

LCR-916
|
LCR-915
|
LCR-914
|
|
|
TEST FREQUENCY
|
|||
|
|
100Hz/120Hz/1k/10k/100kHz
selectable |
100Hz/120Hz/1k/10kHz
Selectable |
100Hz/120Hz/1kHz
Selectable |
|
FULL SCALE
|
|||
|
Main Display
|
20,000/2,000 counts selectable
|
||
|
Sub Display
|
2,000 counts
|
||
|
INDUCTANCE
|
|||
|
Range
|
20uH ~ 20kH depends on the selected test frequency
|
||
|
Best Accuracy
|
+(0.2% rdg + 2 digits)
|
||
|
Resolution
|
0.001uH ~ 0.001kH depends on selected range
|
||
|
CAPACITANCE
|
|||
|
Range
|
20pF ~ 20mF depends on the selected test frequency
|
||
|
Best Accuracy
|
+(0.2% rdg + 2 digits)
|
||
|
Resolution
|
0.001pF ~ 0.001mF depends on selected range
|
||
|
RESISTANCE
|
|||
|
Range
|
20Ω ~ 200MΩ depends on the selected test frequency
|
||
|
Best Accuracy
|
+(0.2% rdg+ 2 digits)
|
||
|
Resolution
|
0.001Ω ~ 0.01MΩ depends on selected range
|
||
|
DC RESISTANCE
|
|||
|
Range
|
200Ω ~ 200MΩ
|
||
|
Best Accuracy
|
+(0.2% rdg+ 2 digits)
|
||
|
Resolution
|
0.01Ω ~ 0.01MΩ depends on selected range
|
||
|
QUALITY FACTOR (Q)
|
|||
|
Range
|
0.000 ~ 999
|
||
|
Accuracy
|
2 x (main parameter accuracy)
|
||
|
Best Resolution
|
0.001
|
||
|
DISSIPATION FACTOR (D)
|
|||
|
Range
|
0.000 ~ 999
|
||
|
Accuracy
|
2 x (main parameter accuracy)
|
||
|
Best Resolution
|
0.001
|
||
|
PHASE ANGLE (θ)
|
|||
|
Range
|
-90° ~ 90°
|
||
|
Accuracy
|
+(0.2% rdg+ 5 digits)
|
||
|
Resolution
|
0.1°
|
||
|
MEASUREMENT CIRCUIT
|
|||
|
|
Parallel or Series selectable
|
||
|
AUTO LCR MODE
|
|||
|
|
Automatically identifies and measures the DUT when the meter is switch on
|
||
|
SORTING MODE
|
|||
|
|
+0.1%, +0.2%, +0.25%, +0.5%, +1.0%, +2.0%, +5.0%, +10.0%, +20.0%, +80%/-20% Selectable
|
||
|
OTHER FUNCTIONS
|
|||
|
|
Auto range, Auto backlit, Max, Min, Data hold, Zero, Auto power off, 46 segments analogue bar
|
||
|
DISPLAY
|
|||
|
|
LCD mono display
|
||
|
INTERFACE
|
|||
|
|
USB
|
||
|
POWER SOURCE
|
|||
|
|
AA Battery 1.5V x 4 or DC 5V(through AC adapter or USB cable)
|
||
|
DIMENSIONS & WEIGHT
|
|||
|
|
95(W) × 207(H) × 52(D) mm, Approx. 630g
|
||
|
