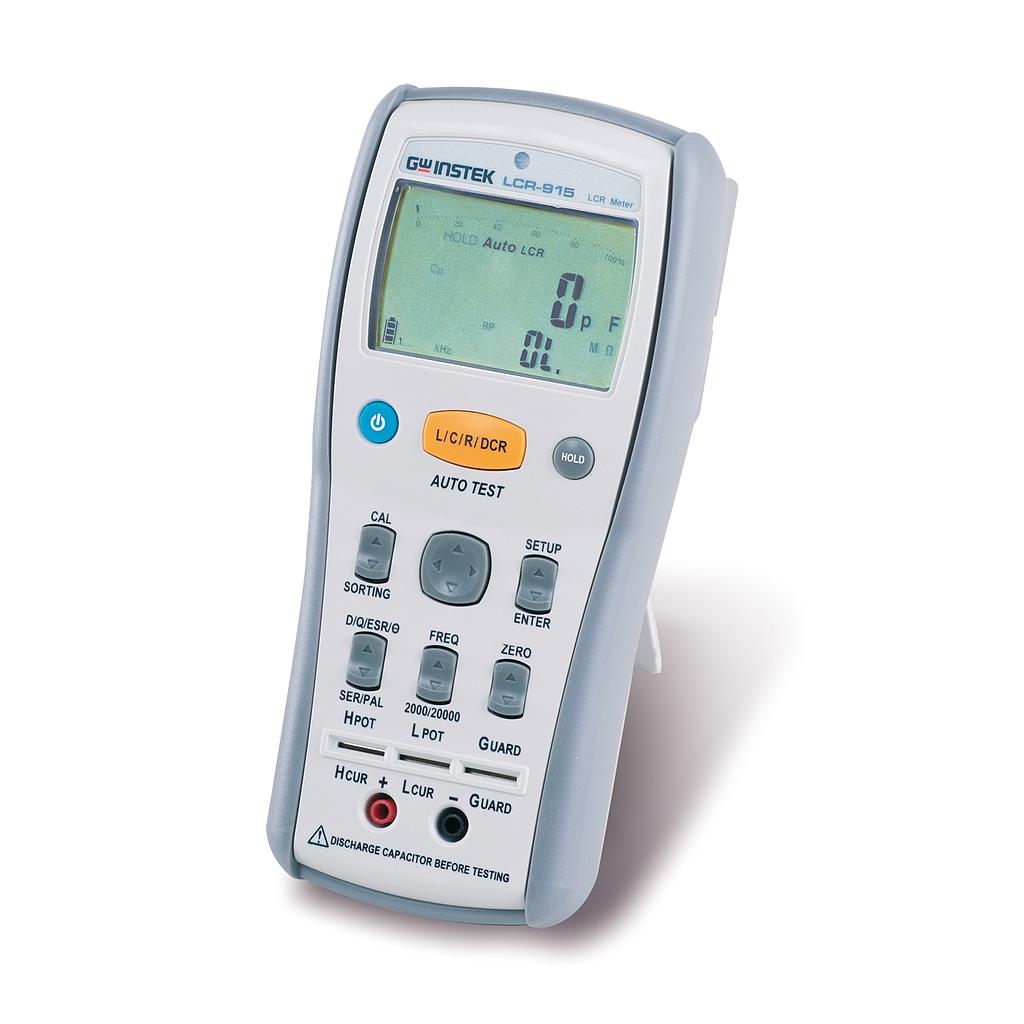

Name: GW INSTEK LCR-914 LCR meter (100Hz/120Hz/1kHz)
Brand: GW INSTEK

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

		LCR-914
TEST FREQUENCY
		100Hz/120Hz/1kHz Selectable
FULL SCALE
Main Display	20,000/2,000 counts selectable
Sub Display	2,000 counts
INDUCTANCE
Range	20uH ~ 20kH depends on the selected test frequency
Best Accuracy	+(0.2% rdg + 2 digits)
Resolution	0.001uH ~ 0.001kH depends on selected range
CAPACITANCE
Range	20pF ~ 20mF depends on the selected test frequency
Best Accuracy	+(0.2% rdg + 2 digits)
Resolution	0.001pF ~ 0.001mF depends on selected range
RESISTANCE
Range	20Ω ~ 200MΩ depends on the selected test frequency
Best Accuracy	+(0.2% rdg+ 2 digits)
Resolution	0.001Ω ~ 0.01MΩ depends on selected range
DC RESISTANCE
Range	200Ω ~ 200MΩ
Best Accuracy	+(0.2% rdg+ 2 digits)
Resolution	0.01Ω ~ 0.01MΩ depends on selected range
QUALITY FACTOR (Q)
Range	0.000 ~ 999
Accuracy	2 x (main parameter accuracy)
Best Resolution	0.001
DISSIPATION FACTOR (D)
Range	0.000 ~ 999
Accuracy	2 x (main parameter accuracy)
Best Resolution	0.001
PHASE ANGLE (θ)
Range	-90° ~ 90°
Accuracy	+(0.2% rdg+ 5 digits)
Resolution	0.1°
MEASUREMENT CIRCUIT
	Parallel or Series selectable
AUTO LCR MODE
	Automatically identifies and measures the DUT when the meter is switch on
SORTING MODE
	+0.1%, +0.2%, +0.25%, +0.5%, +1.0%, +2.0%, +5.0%, +10.0%, +20.0%, +80%/-20% Selectable
OTHER FUNCTIONS
	Auto range, Auto backlit, Max, Min, Data hold, Zero, Auto power off, 46 segments analogue bar
DISPLAY
	LCD mono display
INTERFACE
	USB
POWER SOURCE
	AA Battery 1.5V x 4 or DC 5V(through AC adapter or USB cable)
DIMENSIONS & WEIGHT
	95(W) × 207(H) × 52(D) mm, Approx. 630g
