Warranty: 12 months

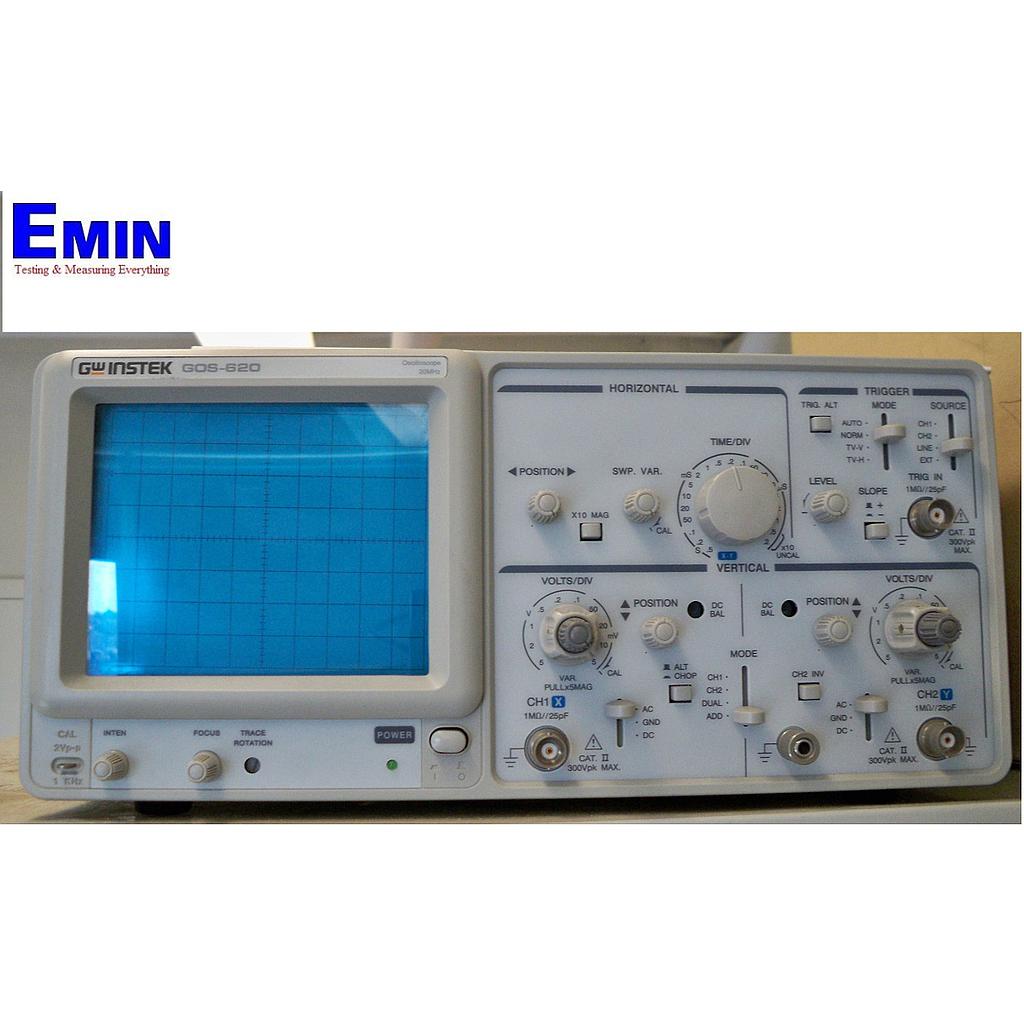

Manufacturer: Gwinstek - Taiwan
Origin: China
|
CRT |
|
| Type | 6-inch rectangular type with internal graticule 8 x 10 div (1div=1cm) |
| Z-Axis Input | Input Impedance: Approx. 47kΩ Sensitivity: Above 5Vp-p Bandwidth: DC ~ 2MHz |
|
VERTICAL SYSTEM |
|
| Sensitivity | 5mV/div~5V/div±3%,x5MAG±5% |
| Bandwidth | DC (AC 10Hz) ~ 20MHz(-3dB) DC (AC 10Hz) ~ 7MHz(-3dB) at x5MAG |
| Rise Time | 17.5ns (50ns at x5MAG) |
| Input Impedance | Approx. 1MΩ |
| Input Coupling | AC, DC, GND |
| Vertical Mode | CH1, CH2, DUAL (ALT/CHOP), ADD, CH2 INV |
|
HORIZONTAL SYSTEM |
|
| Sweep Time |
0.2μs ~ 0.5s/div±3% 100ns ~ 50ms/div±5% (x 10 MAG) 20ns ~ 50ns/div : uncalibrated |
|
TRIGGER |
|
| Trigger Mode | AUTO, NORM, TV-V, TV-H |
| Trigger Source | CH1, CH2, ALT, LINE, EXT |
| Trigger Coupling |
AC |
| Trigger Slope | "+" or "-" |
|
X - Y OPERATION |
|
| Sensitivity | 5mV ~ 5V/div±4% |
| X-axis Bandwidth | DC ~ 500kHz |
| Phase Error | 3° or less from DC ~ 50kHz |
|
OUTPUT SIGNAL |
|
| CH1 Signal Output | Voltage: approx. 20mV/div into 50Ω |
| Calibrator Output | 1kHz Square wave, 2Vp-p±2% |
| POWER SOURCE | |
| AC 115V/230V±15%, 50Hz/60Hz | |
| DIMENSIONS & WEIGHT | |
| 310(W) x 150(H) x 455(D) mm; Approx. 8kg | |
|
