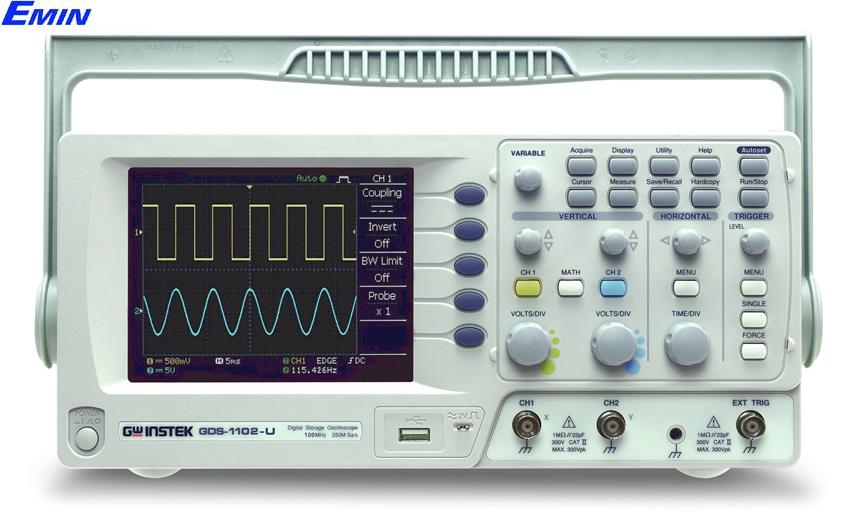

Name: GW INSTEK GDS-1102-U GWinstek GDS-1102-U Digital Oscilloscopes (100Mhz, 2 Channels) (100Mhz, 2 CH, 250MSa/s)
Brand: GW INSTEK

ManufacturerGW INSTEK(View more products from this manufacturer)

ModelGDS-1102-U

OriginChina

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

		GDS-1102-U
VERTICAL
Channels		2
Bandwidth		DC ~ 100MHz (-3dB)
Rise Time		<3.5ns approx="" span="">
Sensitivity	2mV/div ~ 10V/div (1-2-5 increments)
Accuracy	±(3% x \|Readout\|+0.1 div + 1mV)
Input Coupling	AC, DC & Ground
Input Impedance	1M±2%, ~15pF
Polarity	Normal & Invert
Maximum Input	300V (DC+AC peak), CATII
Waveform Signal Process	+ , - , FFT
Offset Range	2mV/div ~ 50mV/div : ±0.4V , 10mV/div ~ 500mV/div : ±4V 1V/div ~ 5V/div : ±40V , 10V/div:±300V
Bandwidth Limit	20MHz (-3dB)
TRIGGER
Sources	CH1 , CH2 , Line , EXT
Modes	Auto, Normal, Single, TV, Edge, Pulse Width
Coupling	AC , DC , LF rej. , HF rej. , Noise rej.
Sensitivity	DC ~ 25MHz : Approx. 0.5div or 5mV 25MHz ~50/70/ 100MHz: Approx. 1.5div or 15mV
EXT TRIGGER
Range	±15V
Sensitivity	DC ~ 25MHz : ~ 50mV ; 25M ~ 50/70/100MHz : ~15mV
Input Impedance	1MΩ±2% , ~ 16pF
Maximum Input	300V (DC AC peak) , CATII
HORIZONTAL
Range	1ns/div ~ 10s/div (1-2.5-5 increments); ROLL : 50ms/div ~ 50s/div
Modes	Main, Window, Window Zoom, Roll, X-Y
Accuracy	±0.01%
Pre-Trigger	10 div maximum
Post-Trigger	1000 div
X-Y MODE
X-Axis Input	Channel 1
Y-Axis Input	Channel 2
Phase Shift	±3° at 100kHz
SIGNAL ACQUISITION
Real-Time Sample Rate	250MSa/s maximum
Equivalent Sample Rate	25GSa/s maximum
Vertical Resolution	8 Bits
Record Length	4K Dots maximum
Acquisition Mode	Normal, Peak Detect, Average
Peak Detection	10ns (500ns/div ~ 10s/div)
Average	2 , 4 , 8 , 16 , 32 , 64 , 128 , 256
CURSORS AND MEASUREMENT
Voltage Measurement	Vpp , Vamp , V avg , Vrms , Vhi , Vlo , Vmax , Vmin , Rise Preshoot/Overshoot , Fall Preshoot/Overshoot
Time Measurement	Freq , Period , Rise Time , Fall Time , Positive Width , Negative Width , Duty Cycle
Cursors Measurement	Voltage difference between cursors (ΔV) Time difference between cursors (ΔT)
Auto Counter	Resolution : 6 digits Accuracy : ±2% Signal Source: All available trigger source except the Video trigger mode
CONTROL PANEL FUNCTION
Autoset	Automatically adjusts Vertical VOLTS/DIV, Horizontal TIME/DIV, and Trigger level
Save Setup	Up to 15 sets of measurement conditions
Save Waveform	15 sets of waveform
DISPLAY
TFT LCD Type	5.7 inch
Display Resolution	234 (Vertically) x 320 (Horizontally) Dots
Display Graticule	8 x 10 divisions
Display Brightness	Adjustable
INTERFACE
USB Slave Connector	USB1.1 & 2.0 full speed compatible (printers and flash disk not supported)
USB Host	Image (BMP), waveform data (CSV), and setup (SET)
POWER SOURCE
Line Voltage Range	AC 100V ~ 240V , 48Hz ~ 63Hz , Auto selection
MISCELLANEOUS
Multi-Language Menu	Available
Online Help	Available
Go/NoGo Function	Available
Data Logger	Available
DIMENSIONS & WEIGHT
	310(W) x 142(H) x 140(D)mm; Approx. 2.5kg

Warranty: 12 months
Manufacturer: Gwinstek - Taiwan
Origin: Taiwan

* 100/70/50 MHz Bandwidth with 2 Input Channels
* 250MSa/s Real-Time and 25GSa/s Equivalent-Time Sampling
* 4k Memory Length per Channel
* Peak Detect as Fast as 10ns
* Save/Recall of 15 Front Panel Settings & Waveforms
* 5.7" TFT Color Display
* 19 Auto Measurements
* Arithmetic Operators - Add, Subtract, FFT
* USB Port for PC Connection
* Data Logger
* Limited Lifetime Warranty
