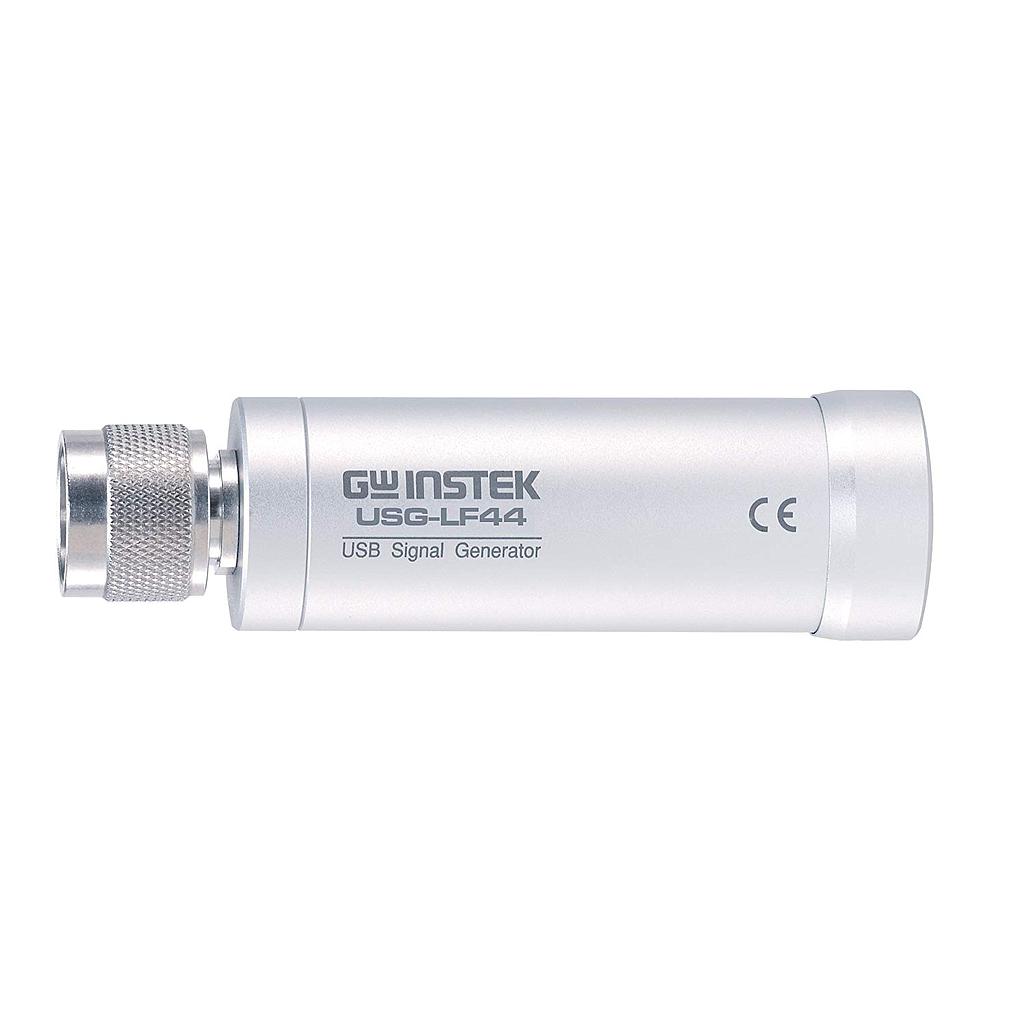

GW Instek USG-LF44 RF Signal Generators

Name: GW Instek USG-LF44 RF Signal Generators
Brand: GW INSTEK

ManufacturerGW INSTEK(View more products from this manufacturer)

ModelUSG-LF44

OriginTaiwan

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Manufacturer: GW Intek

Model: USG-LF44

Datasheet

Features

Frequency Range: 34.5MHz ~ 4400MHz
Output Power Range: -30dBm ~ 0dBm
Continuous Wave Signal Without any Modulation
Support Fixed Frequency, Frequency Sweep, Frequency Hopping & Power Sweep Mode
-107dBc/Hz Phase Noise @100kHz Offset
Frequency Resolution: 10kHz
PC USB Interface Powered and Controlled
External PC Software Support Different Operating System

GW Instek debuts the brand new USG-Series RF signal generator, which comes with five models to meet users requirements and is a pocket-sized, and USB interface compatible RF signal generator with the frequency range from 35MHz to 4400MHz. The USG-Series provides continuous wave (CW) signal outputs without any signal modulation function. The built-in electronic attenuator of the USG-Series allows an adjustable power range from -30dBm to 0dBm. The USG-Series has several operational modes including fixed frequency, frequency sweep, frequency hopping, and power sweep. The USB-Series RF signal generator, with the frequency bandwidth limitation, provides lower harmonic output performance.

Figure shows the test result of USG-LF44 simultaneous power sweep and frequency sweep. The test result covers the frequency range from 35MHz to 4400MHz and the power range from -30dBm to 0dBm. The yellow trace illustrates the test result of maximum hold and the pink trace shows the test result of signal output.

GWINSTEK USG RF Portable Signal Generator Introduction
GWINSTEK USG RF Signal Generator PC Application Program Demo
Primary RF Software Demo ( USG RF Signal Generator & GSP-730 Spectrum Analyzer)

A USG CD-ROM provides dedicated PC application programs, which were developed under JAVA software* structure. Users must install JAVA software to use USG PC application programs, which support operating systems such as Windows 2000/XP/Vista/7/8, Linux & Mac OS X through the USB interface.

Users can download USG APP to smart phone or tablet with Android 4.0 or above. To operate USG, use USB-OTG connecting cable to connect tablet (or smart phone) and USG. The Android APP application software for the USG signal generator is available on Google Play Store.

The USG signal generator can be designated as the tracking generator for GSP-730 spectrum analyzer to conduct measurement functions of scalar network analyzer. A USG CD-ROM provides PC application programs for the Primary RF software. Users can, using a Windows OS computer, control USG and GSP-730 via the Primary RF software. The NI-488.2 software** must be installed first before installing Primary RF software.

Model	USG-LF44	USG-0103	USG-0818	USG-2030	USG-3044
Frequency Range	34.5 MHz to 4.4 GHz	100 MHz to 300 MHz	800 MHz to 1.8 GHz	2.0 GHz to 3.0 GHz	3.0 GHz to 4.4 GHz
Output Power	-30 dBm to 0 dBm, in 1 dB steps
Internal Reference Frequency	25 MHz , aging ±1 ppm at first year
Frequency Accuracy ( 0 dBm Output Level )	± 100 Hz at 100MHz	± 100 Hz at 100MHz	± 800 Hz at 800MHz	± 2 kHz at 2GHz	± 3 kHz at 3GHz
Frequency Resolution	10 kHz
Output Isolation	≦ -75 dBc , Output Control On/Off
Mode Control	Fixed Frequency / Single Sweep / CW Sweep / Hopping / Power sweep
Step Dwell	≦1000 ms in 1 ms steps
Frequency Offset	-50 kHz to 50 kHz in 10 kHz steps
Output Flatness (0 dBm Output Level)	-1 dBm to 3.5 dBm, typical	-3 dBm to -2 dBm, typical	-1 dBm to -0.5 dBm, typical	-1 dBm to 0.5 dBm, typical	0 dBm to 3.5 dBm, typical
Phase noise
Carrier frequency	fc =1.0GHz	fc = 200 MHz	fc = 1.3 GHz	fc = 1.5 GHz	fc = 3.7 GHz
At 10 kHz offset frequency	< -97 dBc/Hz typical -100 dBc/Hz	<-100 dbc="" hz="" typical="" span="">	< -97 dBc/Hz, typical	<- 93="" dbc="" hz="" typical="" span="">	<- 88="" dbc="" hz="" typical="" span="">
At 100kHz offset frequency	< -107 dBc/Hz typical -110dBc/Hz	<-110 dbc="" hz="" typical="" span="">	<-102 dbc="" hz="" typical="" span="">	<- 100="" dbc="" hz="" typical="" span="">	<- 94="" dbc="" hz="" typical="" span="">
2nd Harmonics (0 dB Attenuation)	≦ -15 dBc, typical 34.5 MHz to 2.0 GHz	≦ -45 dBc, typical>100 MHz	≦ -25 dBc, typical>800 MHz
	≦ -10 dBc, typical 2.0 GHz to 3.0 GHz			≦ -30 dBc, typical2.0 GHz to 3.0 GHz
	≦ -25 dBc, typical 3.0 GHz to 4.4 GHz				≦ -25 dBc, typical3.0 GHz to 4.4 GHz
3rd Harmonics (0 dB Attenuation)	≦ -5 dBc, typical 34.5 MHz to 2.0 GHz,	≦-7dBc typical,≦150MHz ≦ -35 dBc, typical >150 MHz	≦ -25 dBc, typical≦900MHz ≦ -35 dBc, typical >900 MHz
	≦ -20 dBc, typical 2.0 GHz to 3.0 GHz			≦ -55 dBc, typical2.0 GHz to 3.0 GHz
	≦ -40 dBc, typical 3.0 GHz to 4.4 GHz				≦ -40 dBc, typical3.0 GHz to 4.4 GHz
Spurious related to Resolution settings	≦ -30 dBc, typical , Resolution < 1MHz ≦ -65 dBc, typical , Resolution ≧ 1MHz
Spurious related to the fundamental output	≦ -60 dBc, typical	≦ -60 dBc, typical	≦ -65 dBc, typical	≦ -65 dBc, typical	≦ -65 dBc, typical
Supported OS	Windows/Linux/Mac/Android
Interface	USB 2.0
Supply Voltage	5 V nominal
Current Consumption	200 mA
RF Connector Type	N-type male
Impedance	50 Ohm nominal
Output VSWR	< 1.5:1 , Output Level @ -30dBm
Maximum permissible DC voltage	±25V
Maximum Reverse Power	+30dBm (1W)
Electromagnetic compatibility	EN 55011 class A, EN 61326-1 (industrial environment), EN 61326-2-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-11
Dimensions & Weight	30mm(W) x 103mm(H) x 30mm(D), Approx. 100g
