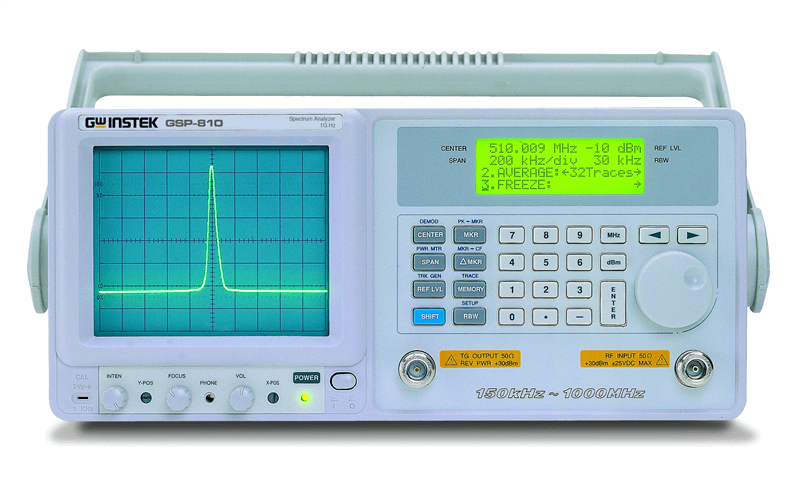

FREQUENCY | |
Frequency Range | 150kHz~1GHz |
Aging Rate | ± 10ppm, 0~50°C, 2ppm/yr |
Span Range | Zero, 2kHz~100MHz/div in 1-2-5 sequence |
Phase Noise | -77dBc/Hz @ 1GHz 30kHz offset |
Frequency Resolution | 1kHz C.F. entry, 40Hz sweep resolution at 2kHz/div |
Frequency Display | 6 1/2 digit setting |
Frequency Control | Digital phase locked |
RESOLUTION BANDWIDTH | |
RBW Range | 3kHz, 30kHz, 220kHz, 4MHz |
RBW Accuracy | 15% |
Video Bandwidth Range | 1.6kHz/90kHz couple with RBW |
AMPLITUDE | |
Measurement Range | -100dBm~+20dBm |
Overload Protection | +30dBm continuous, ± 25VDC |
Reference Level Range | -30dBm~+20dBm |
Amplitude Display Range | 75dB |
Amplitude Accuracy | ±1.5dB typical @ 0dBm, 80MHz |
Frequency Flatness | ±1.5dB over 100MHz,±2.5dB typical over entire band/±3dB:150kHz~10MHz |
Amplitude Level Linearity | ± 1.5dB over 70dB |
DYNAMIC RANGE | |
Average Noise Floor | -95dBm @30kHz RBW, -100dBm typical / -75dBm: 150kHz~10MHz |
Third Inter-Modulation | <-70dBc, @-40dBm input, 2tones, 2MHz apart/ <-45dBc:150kHz~10MHz |
Harmonic Distortion | <-40dBc, RF input < selected reference |
Non-Harmonic Spurious | <-60dbc typical="" down="" from="" reference="" level="" average="" 5mhz="" div="" span=""> |
DISPLAY SYSTEM | |
Display Device | CRT Display, 8 x 10 graticule, 6-inch waveform screen LCD Display, 4 line x 20 character data screen |
Display Function | Center Frequency Control, Bandwidth, Reference Level, Span Range, Amplitude |
FUNCTIONS | |
Marker Mode | Absolute, relative, PK->marker, marker->center |
Number of Markers | 2 |
Marker Resolution | 0.1dB, 1kHz |
Marker Accuracy | 0.1dB±amplitude accuracy |
Memory | 10 save/recall memory |
Trace | Max. hold, average(2~32 traces), freeze(Hold) |
Setup | Access parameters |
Demodulator | WB FM, 120kHz deviation MB FM, 75kHz deviation NB FM, 30kHz deviation AM Outputs : Internal speaker, 3.5mm stereo jack, wired for mono operation |
Calibrate Signal | 80MHz, -30dBm |
Interface | RS-232C standard & remote display software (The software will be downloaded from GW Web-Site.) |
POWER SOURCE AC | |
100V/120V/220V/230V ±10%, 50/60Hz | |
ACCESSORIES | |
User manual x 1, Power cord x 1 | |
DIMENSIONS & WEIGHT | |
310(W) x 150(H) x 455(D) mm Approx. 8.5kg | |
