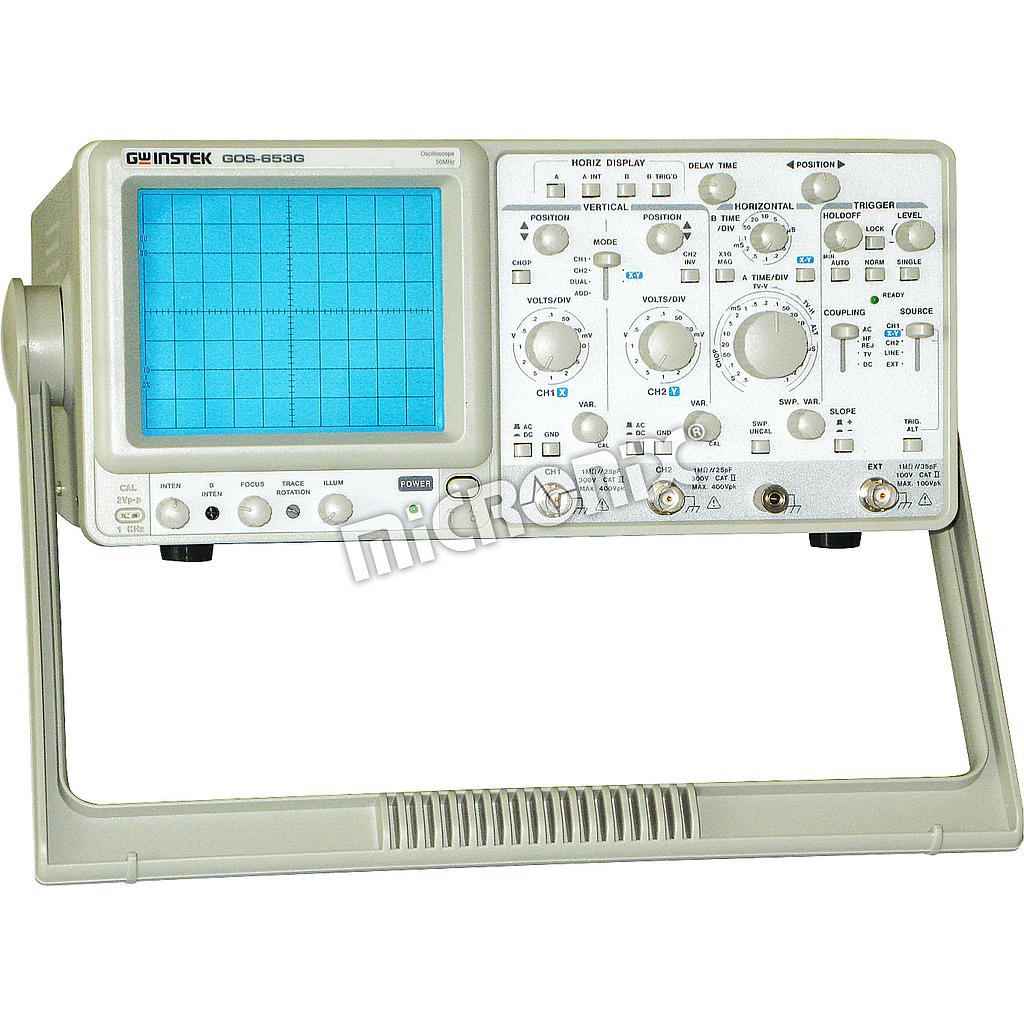

The screen display with 8x10 6 inch squares
Sensitivity: 5mV ~ 5V/div±3%,1mV ~ 2mV/div±5%
Bandwidth: 50MHz
Input: AC, DC, GND
Mode: CH1, CH2, DUAL, ADD, CH2 INV
Power supply: AC 100V / 120V/220V / 230V ± 10%, 50 / 60Hz
-
| CRT | |
| Type | 6-inch rectangular type with internal graticule 0%, 10%, 90% and 100% markers. 8 x 10 div (1div=1cm) |
| Accelerating Potential | 12kV |
| Illumination | Continuously adjustable |
| Z-axis Input |
Input Impedance: Approx. 5kΩ Sensitivity:Above 3Vp-p Bandwidth:DC ~ 5MHz |
| VERTICAL SYSTEM | |
| Sensitivity | 5mV ~ 5V/div±3%,1mV ~ 2mV/div±5% |
| Bandwidth | DC ~ 50MHz DC ~ 15MHz at 1 ~ 2mV/div |
| Rise Time | 7ns (23.3ns for 1 ~ 2mV/div) |
| Signal Delay |
leading edge can be monitored (GOS-653G only) |
| Input Impedance | Approx. 1MΩ |
| Input Coupling | AC, DC, GND |
| Vertical Mode |
CH1, CH2, DUAL, ADD, CH2 INV (Dual automatic switching ALT and CHOP) |
| HORIZONTAL SYSTEM | |
| A(main) Sweep Time | 0.1μs ~ 0.5s/div ±3% 100ns ~ 50ms/div ±5% (x 10 MAG) 10ns ~ 50ns ±8% (x 10 MAG) |
| B(delay) Sweep Time | 0.1μs ~ 0.5ms/div ±3% 100ns ~ 50μs/div ±5% (x 10 MAG) 10ns ~ 50ns/div ±8% (x 10 MAG) |
| Delay Time | 1μs ~ 5ms/div ±5% (GOS-653G only) |
| Delay Time Jitter | Better than 1:10000 (GOS-653G only) |
| TRIGGER | |
| Trigger Mode | AUTO, NORM, SINGLE |
| Trigger Source | CH1, CH2, ALT, LINE, EXT |
| Trigger Coupling | AC, DC, HF REJ, TV |
| Trigger Slope | "+" or "-" |
| X-Y OPERATION | |
| Sensitivity | 5mV ~ 5V/div±4% |
| X-axis Bandwidth | DC ~ 2MHz |
| Phase Error | 3° or less from DC ~ 100kHz |
|
OUTPUT SIGNAL |
|
| Ch1 Signal Output | Voltage: approx. 50mV/div into 50Ω |
| Calibrator Output | 1kHz Square wave, 2Vpp±2% |
| POWER SOURCE | |
| AC 100V/ 120V/ 220V/ 230V ±10%, 50Hz/ 60Hz | |
| DIMENSIONS & WEIGHT | |
| 310(W) x 150(H) x 455(D) mm; Approx. 8.2kg | |
Warranty: 12 months
Manufacturer: Gwinstek - Taiwan
Origin: China
