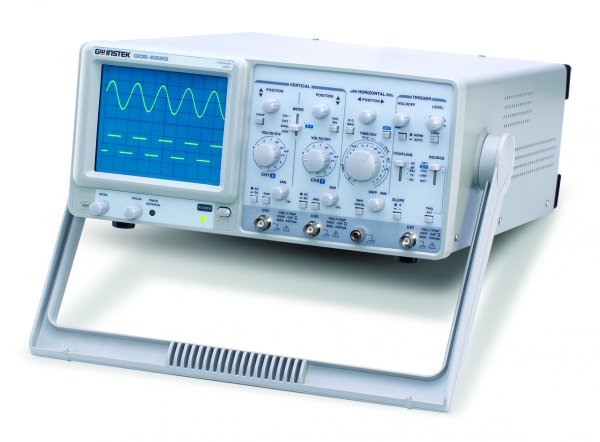

The screen display with 8x10 6 inch squares
Sensitivity: 5mV ~ 5V / DIV ± 3%, 1mV ~ 2mV / DIV ± 5%
Bandwidth: 20MHz
Input: AC, DC, GND
Mode: CH1, CH2, DUAL, ADD, CH2 INV
Power supply: AC 100V / 120V/220V / 230V ± 10%, 50 / 60Hz
-
| CRT | |
| Type | 6-inch rectangular type with internal graticule 8 x 10 div (1div=1cm) |
| Z-Axis Input | Input Impedance: Approx. 5kΩ Sensitivity: Above 3Vp-p Bandwidth: DC ~ 5MHz |
| VERTICAL SYSTEM | |
| Sensitivity | 5mV/div~5V/div±3%,1mV~2mV/div±5% |
| Bandwidth | DC ~ 35MHz (GOS-635G) DC ~ 20MHz (GOS-622G) DC ~ 10MHz at 1~ 2mV/div |
| Rise Time | 10ns (35ns at 1mV~2mV/div)for GOS-635G 17.5ns(35ns at 1mV~2mV/div)for GOS-622G |
| Input Impedance | Approx. 1MΩ |
| Input Coupling | AC, DC, GND |
| Vertical Mode | CH1, CH2, DUAL, ADD, CH2 INV (Dual automatic switching ALT and CHOP) |
| HORIZONTAL SYSTEM | |
| Sweep Time |
0.1μs ~ 0.5s/div ±3% 100ns ~ 50ms/div ±5% (x 10 MAG) 10ns ~ 50ns ±8% (x 10 MAG) |
| TRIGGER | |
| Trigger Mode | AUTO, NORM |
| Trigger Source | CH1, CH2, ALT, LINE, EXT |
| Trigger Coupling | AC, DC, HF REJ, TV |
| Trigger Slope | "+" or "-" |
| X - Y OPERATION | |
| Sensitivity | 5mV ~ 5V/div ±4% |
| X-axis Bandwidth | DC ~ 1MHz |
| Phase Error | 3° or less from DC ~ 50kHz |
| OUTPUT SIGNAL | |
| Ch1 Signal Output | Voltage: approx. 50mV/div into 50Ω |
| Calibrator Output | 1kHz Square wave, 2Vpp ±2% |
| POWER SOURCE | |
| AC 100V/ 120V/ 220V/ 230V ±10%, 50Hz/ 60Hz | |
| DIMENSIONS & WEIGHT | |
| 310(W) x 150(H) x 455(D) mm; Approx. 8.2kg | |
