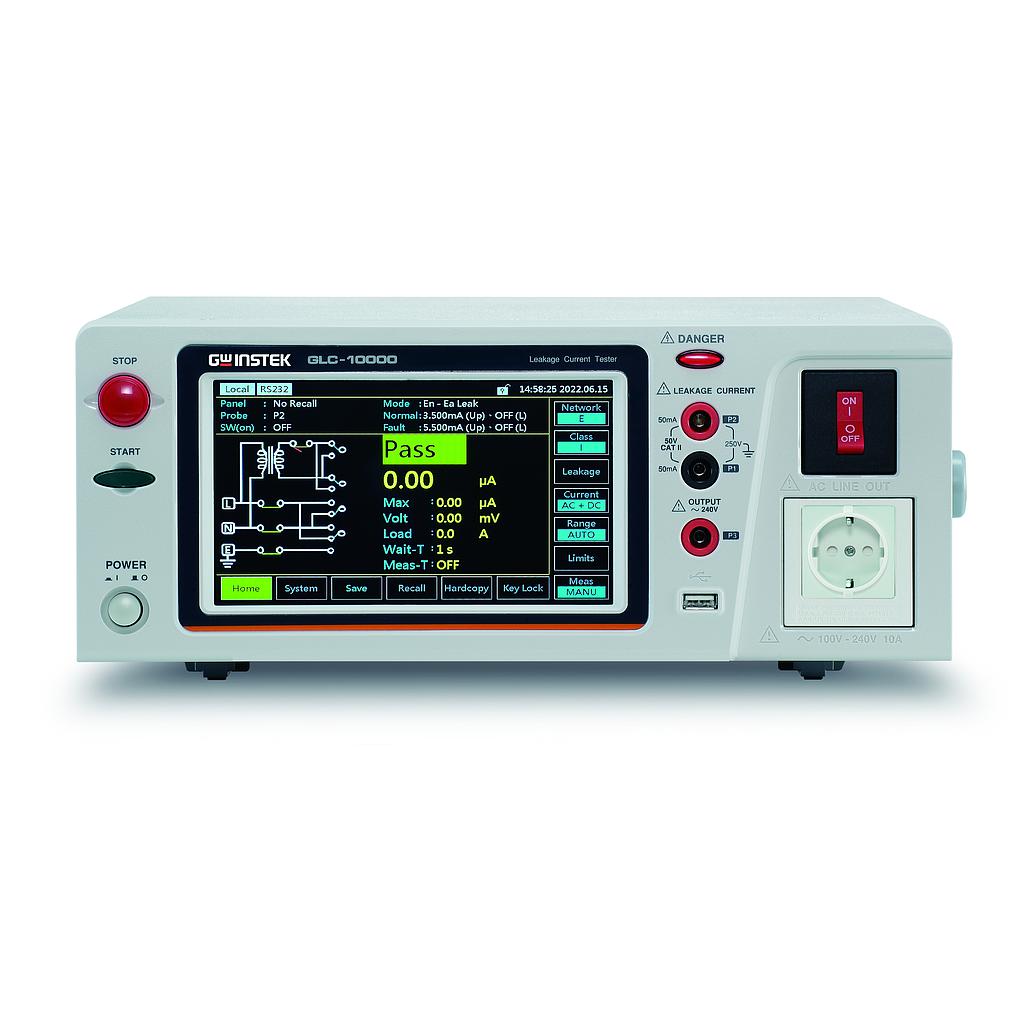

GW INSTEK GLC-10000 Leakage Current Tester (4.00µA～50.00µA, 0.01µA, ±2.0%fs)

DC

Ranges/ Range/ Resolution/ Accuracy:

50.00mA/ 4.00mA～50.00mA/ 10µA/ ±(0.2%rdg+6dgt)

5.000mA/ 0.400mA～5.000mA/ 1µA/ ±(0.2%rdg+6dgt)

500.0µA/ 40.0µA～500.0µA/ 0.1µA/ ±(0.2%rdg+6dgt)

50.00µA/ 4.00µA～50.00µA/ 0.01µA/ ±2.0%fs

AC / AC+DC

Ranges/ Range/ Resolution/ Accuracy

50.00mA/ 4.00mA～50.00mA/ 10µA/ ±(4.0%rdg+10dgt)/ ±(2.0%rdg+6dgt)/ ±(2.0%rdg+10dgt)

5.000mA/ 0.400mA～5.000mA/ 1µA/ ±(4.0%rdg+10dgt)/ ±(2.0%rdg+6dgt)/ ±(2.0%rdg+10dgt)

500.0µA/ 40.0µA～500.0µA/ 0.1µA/ ±(4.0%rdg+10dgt)/ ±(2.0%rdg+6dgt)/ ±(2.0%rdg+10dgt)

50.00µA/ 4.00µA～50.00µA/ 0.01µA/ ±4.0%fs/ ±2.0%fs/ ±2.0%fs

AC Peak

Ranges/ Range/ Resolution/ Accuracy

75.0mA/ 5.0mA～75.0mA/ 100µA/ ±(2.0%rdg+6dgt)/ ±5%fs/ ±15%fs

7.500mA/ 0.500mA～7.500mA/ 1µA/ ±2.5%fs/ ±5%fs/ ±15%fs

750.0µA/ 4.0µA～750.0µA/ 0.1µA/ ±4%fs/ ±5%fs/ ±20%fs

Power Supply

For GLC-10000: AC 100V~240V, 50/60Hz

For EUT IN: AC 100V~240V, 50/60Hz , 20A

EUT OUT (Front): AC 100V~240V, 50/60Hz , 10A

EUT OUT (Rear): AC 100V~240V, 50/60Hz , 20A

Interface: RS-232C, USB host & device, LAN, Signal I/O and GPIB (optional)

Dimensions & Weight: 342 (W) x 133.87 (H) x 348.51 (D); Approximately 7.5kg
