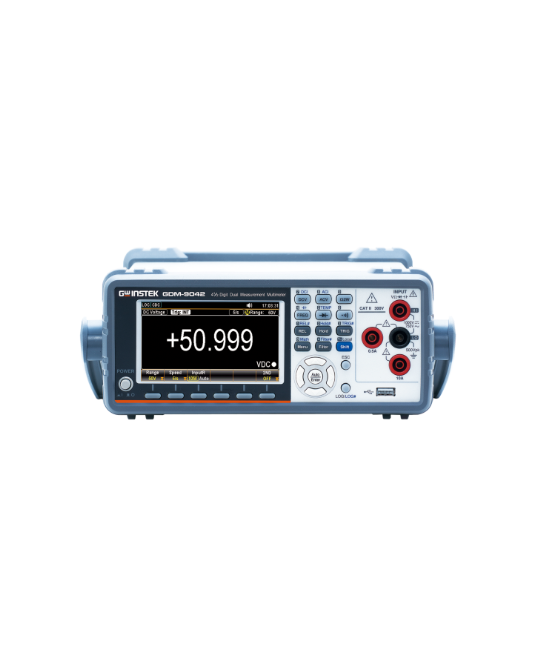

GW INSTEK GDM-9042 Dual Measurement Multimeter (1000V, 100MΩ, 10A)

DC Voltage Range: 500 mV to 1000 V

Resolution: 10 μV to 100 mV

Best Accuracy: 0.02%

Resistance Range (Ω): 500 Ω to 100 MΩ

Resolution: 10 mΩ to 10 kΩ

Best Accuracy: 0.1%

DC Current Range (DCA): 500 μA to 10 A

Resolution: 10 nA to 1 mA

Accuracy at 50.000 mA Range: 0.05%

Diode Test: 5 V / 100 μV / 0.05%

Capacitance Measurement Ranges (C): 5 nF / 50 nF / 500 nF / 5 μF / 50 μF

AC Voltage RMS Range (ACV or AC+DC): 500 mV to 750 VAC

Resolution: 10 μV to 100 mV

True RMS AC Current Range (ACA or AC+DC): 500 μA to 10 A

Frequency Measurement: up to 1 MHz / 0.01%

Temperature Measurement: -200 °C to +300 °C / 0.1 °C

Display: 4.3” TFT Graphic LCD

Interfaces: USB Device, USB Host, GPIB (optional)

Feature: Automatic function and range recognition
