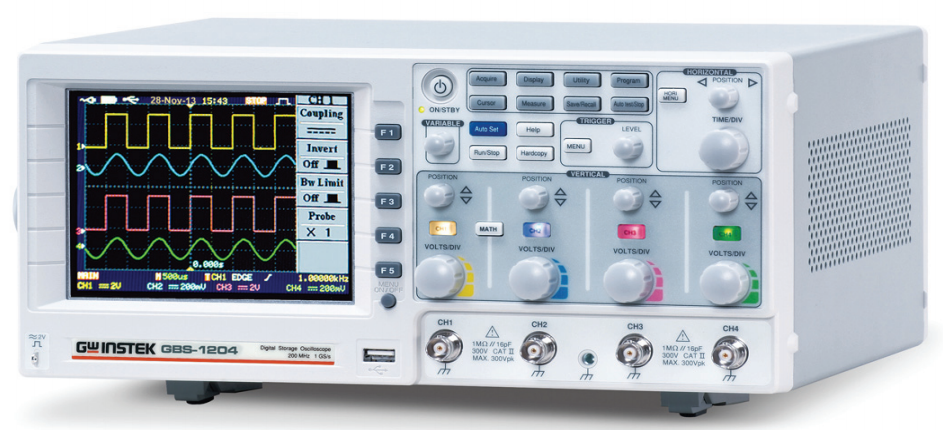

| GBS-1074 | |||
| VERTICAL | |||
| Channels | 4 | ||
| Bandwidth | DC ~ 70MHz (-3dB) | ||
| Rise Time | 5 ns Approx. | ||
| Sensitivity | 2mV/div ~ 5V/div (1-2-5 increments) | ||
| Accuracy | ±(3% x |Readout|+0.05 div x Volts/div+0.8mV) | ||
| Input Coupling | AC, DC & Ground | ||
| Input Impedance | 1MΩ±2%, ~16pF | ||
| Polarity | Normal & Invert | ||
| Maximum Input | 300V (DC+AC peak), CATII | ||
| Waveform Signal Process | + , - ,* , FFT ,FFTrms | ||
| Offset Range | 2mV/div ~ 20mV/div : ±0.5V | ||
| 50mV/div ~ 200mV/div : ±5V | |||
| 500mV/div ~ 2V/div : ±50V | |||
| 5V/div : ±300V | |||
| Bandwidth Limit | 20MHz (-3dB) | ||
| TRIGGER | |||
| Sources | CH1 , CH2 , CH3 , CH4 , Line | ||
| Type | Edge ,Video ,Pulse | ||
| Modes | Auto-Level, Auto, Normal, Single | ||
| Video trigger standard | SECAM ,PAL ,NTSC | ||
| Coupling | AC , DC , LF rej. , HF rej. , Noise rej. | ||
| Sensitivity | DC ~ 25MHz : Approx. 0.5div or 5mV | ||
| 25MHz ~70/100/ 200MHz : Approx. 1div or 10mV | |||
| HORIZONTAL | |||
| Range | 1ns/div ~ 10s/div (1-2-5 increments) | ||
| ROLL : 250ms/div ~ 10s/div | |||
| Modes | Main, Window, Window Zoom, Roll, Scan, X-Y | ||
| Accuracy | ±0.01% | ||
| Pre-Trigger | 20 div maximum | ||
| Post-Trigger | 1000 div | ||
| X-Y MODE | |||
| X-Axis Input | Channel 1 | ||
| Y-Axis Input | Channel 2 ,Channel3 ,Channel 4 | ||
| Phase Shift | ±3° at 100kHz | ||
| SIGNAL ACQUISITION | |||
| Real-Time Sample Rate | 1GSa/s maximum | ||
| Equivalent Sample Rate | 25GSa/s maximum | ||
| Vertical Resolution | 8 Bits | ||
| Record Length | 25K Points maximum | ||
| Acquisition Mode | Normal, Peak Detect, Average | ||
| Peak Detection | 10ns | ||
| Average | 2 , 4 , 8 , 16 , 32 , 64 , 128 , 256 | ||
| CURSORS AND MEASUREMENT | |||
| Voltage Measurement | Vpp , Vamp , Vavg , Vrms , Vhi , Vlo , Vmax , Vmin , Rise Preshoot/ Overshoot , Fall Preshoot/Overshoot | ||
| Time Measurement | Freq , Period , Rise Time , Fall Time , Positive Width , Negative Width , Duty Cycle | ||
| Delay Measurement | Eight types of delay measurement | ||
| Cursors Measurement | Voltage difference between cursors (ΔV) Time difference between cursors (ΔT) | ||
| Auto Counter | Resolution : 6 digits | ||
| Accuracy : ±2% | |||
| Signal Source: All available trigger source except the Video trigger mode | |||
| CONTROL PANEL FUNCTION | |||
| Autoset | Automatically adjusts Vertical VOLTS/DIV, Horizontal TIME/DIV, and Trigger level | ||
| Save Setup | Up to 20 sets of measurement conditions | ||
| Save Waveform | 24 sets of waveform | ||
| DISPLAY | |||
| TFT LCD Type | 5.7 inch | ||
| Display Resolution | 234 (Vertically) x 320 (Horizontally) Dots | ||
| Display Graticule | 8 x 10 divisions ; 8 x 12 divisions (menu off) | ||
| Display Brightness | Adjustable | ||
| INTERFACE | |||
| Go/NoGo Output | 5V Maximum/10mA TTL Open Collector Output | ||
| RS-232 Interface | DB 9-pin male DTE RS-232 interface | ||
| GPIB Interface (Option) | Fully programmable with IEEE 488.2 compliance | ||
| USB | USB Host/Device 2.0 full speed supported | ||
| POWER SOURCE | |||
| Line Voltage Range | AC 100V ~ 240V , 48Hz ~ 63Hz , Auto selection | ||
| MISCELLANEOUS | |||
| Multi-Language Menu | Available | ||
| Online Help | Available | ||
| Data Log | Available | ||
| Time Clock | Time and Date, Provide the Date/Time for saved data | ||
| DIMENSIONS & WEIGHT | |||
| 310(W) x 142(H) x 254(D) mm; Approx. 4.3kg | |||
