Input voltage: DC 30V
Rated power: 45W
Specification:
Torsion range:
kgf.cm: 2-16
N.m: 0.196-1.57
Lbf.in: 1.734-13.87
Torque accuracy (%): ±5
Torque adjustment: stepless
No-load speed(rpm): 1000
Applicable screw diameter(mm):
Mechanical tooth(mm): 2.3-3.5
Self-tapping teeth(mm): 2.0-3.0
Suitable for screwdriver head: ø5

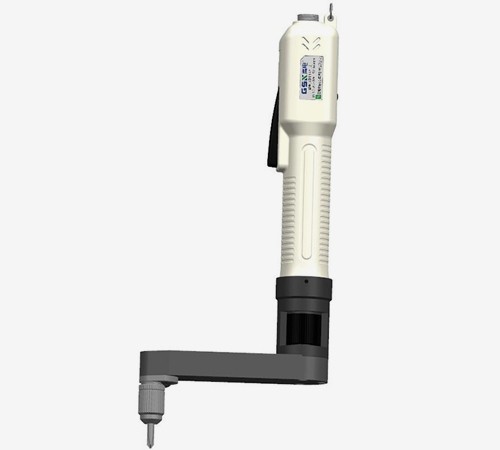

Product Details
1. This mechanism is suitable for the ordinary straight electric screwdriver that cannot be used normally due to interference directly above the screw, and the mechanism avoids interference to achieve normal lock.
2. The center distance of the driver head part of the mechanism is 9.6mm, the maximum locking torque is 16kgf.cm, and the connecting rod part is 66mm longer than the standard type, which is suitable for the locking environment where the standard type cannot be used normally due to the short size of the connecting rod part.
3. When the size of the mechanism does not meet the actual requirements, it can be customized according to demand.
