Input: AC110-240V

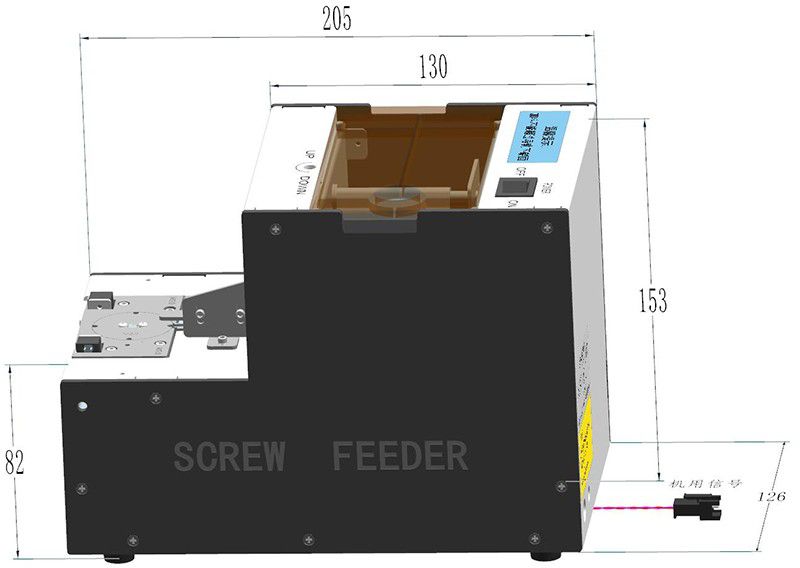

Overall dimension: 205*126*153
Application scenario: Machine (used)
exportation: DC15V
Net weight: About 2.8kg
Screw diameter (mm): 1.4
Nut diameter (mm): 1.6-9
Nut thickness (mm): ≥0.3mm
Screw length (mm): 2.0-10
Product Details

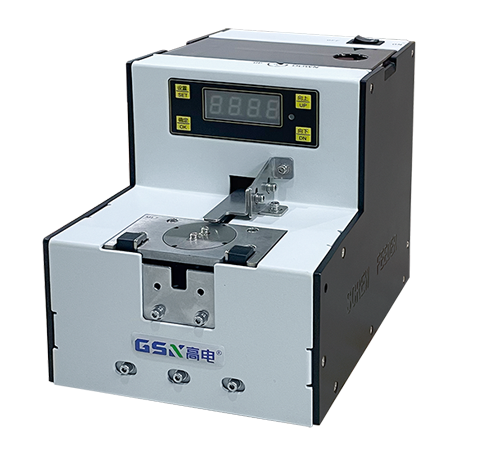

1. This product is a medium machine screw feeder (with signal output), suitable for a variety of automatic screw lock equipment feeding system, with signal terminal, easy to communicate with the equipment.
2. Wide application range Widely applicable to a variety of types and lengths of screws, such as M1.2-M5.0 standard screws, special screws, short screws, self-tapping screws, screws with gaskets, etc., especially suitable for smart phones, smart watches and other precision screw lock environment.
3. The screws run smoothly in the drum, and any screws that do not enter the track in the correct direction will fall into the drum and enter the next cycle, and it is not easy to get stuck in normal use.
4. The work efficiency can be adjusted feeding and vibration independent control, can freely set the ideal delay time, gear feeding turntable and four degree takeout disk can be independently controlled, can be set according to different screws and rotation speed, adjust the screw feeding and dividing speed, suitable for a variety of operations.
5. Can greatly improve the production efficiency screw automatic indexing (90°) to the position of the feeding port, without manual correction can directly take the material, greatly improve the production efficiency.
6. Screw counting function The screw machine is equipped with a digital display panel, through which the setting parameters can be personalized adjusted, and with automatic screw counting function.
7. Fault alarm function the dial will automatically reverse when the material is stuck, normal recovery after positive rotation, abnormal conditions occur when the screw will automatically start the alarm device (lack of material).
