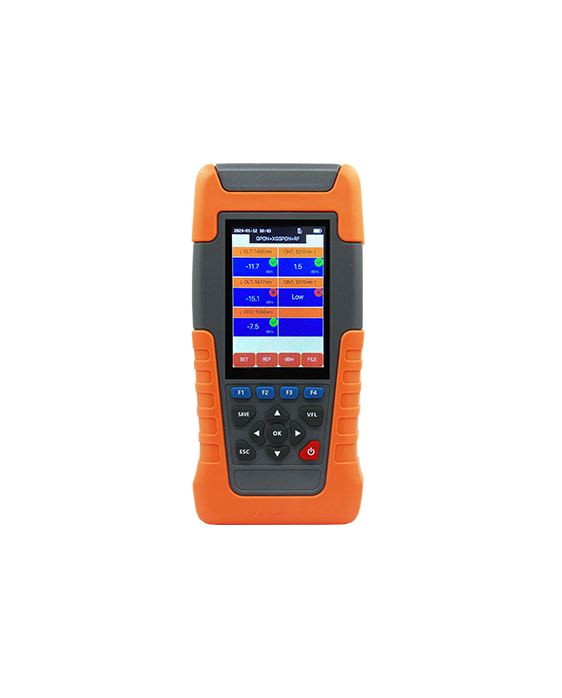

10G PON Power Meter
Wavelength: 1270nm, 1310nm, 1490nm, 1550nm, 1577nm
Measurement Range (dBm): +10 ~ –35 (1270/1310nm), +12 ~ –40 (1490nm), +25 ~ –40 (1550nm), +12 ~ –40 (1577nm)
Spectral Passband: 1270±10nm, 1310±10nm, 1490±10nm, 1550±10nm, 1577±6nm
Insertion Loss: ≤1.5dB
Uncertainty: ≤0.5dB
Display Resolution: 0.01dB
Display Unit: dBm/dB/mW
Threshold Setting: Support user defined
VFL
Wavelength: 650±10nm
Output Power: 10mW
Working Mode: CW, 1Hz/2Hz
Optical Port: Universal 2.5mm
Display: 3.5-inch touch screen LCD
Optical Port: 2SC/APC or 2SC/UPC
Charging Port: USB Type-C USB port
Power Supply: 5000mAh lithium battery, Standby >20h, Measuring time >12h
Data Storage: 16G TF card, 1000 traces
Working Temp: –10°C ~ +50°C
Storage Temp: –40°C ~ +70°C
Dimension: 192.9L × 93.8W × 47Hmm
Weight: 480g
