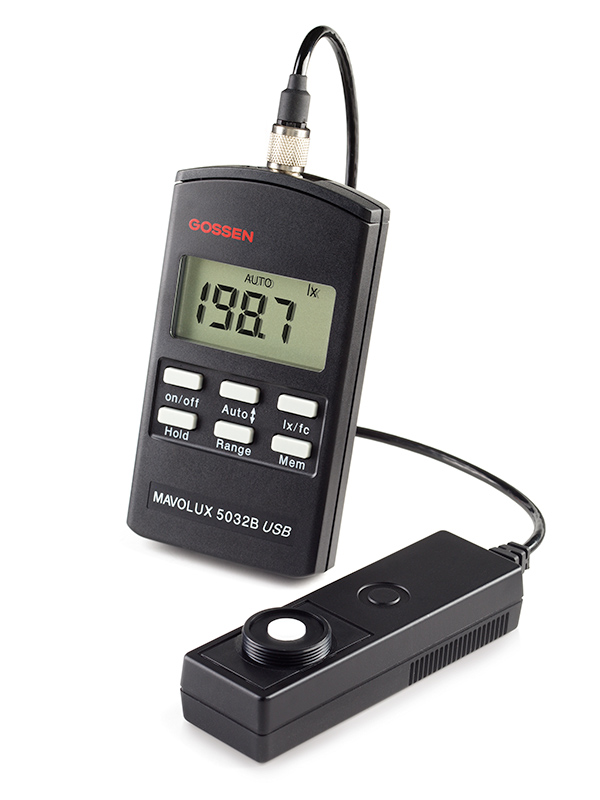

Type: Precision Luxmeter
Classification: Class C DIN 5032-7 / EN 13032-1 appendix B
MEASURING FUNCTIONS
Illuminance [Lux]: 0.1 lx…199 900 lx/0.01 fc …19 990 fc
Luminance: 1 cd/m²…1 999 000 cd/m²/0.1 fL…199 900 fL with optional luminance attachment, not classified
Measuring ranges: 5
Measuring range selection: Automatic / manual
Measuring rate: 2 per second
Measuring method: Distance measurement, Contact measurement with optional luminance attachment
Measuring sensor: Silicon photodiode with V (λ) filter
Probe with tripod thread: •
Measurement cable: 1.5 m, plug-in
Measured value memory: 100 measured values
Error limit – V(λ) adapted (f1‘), typical: < 3 %
Error limit – overall error, typical: ≤ 8 %
Accuracy: ± 3 % of reading ± 1 digit
OPERATION
Display: 3 1/2 digit LCD
Back-Light: •
Operating elements: 6 keys
Interface: USB 1.1
Software: GLUX 2
POWER SUPPLY
Battery: 1.5 V mignon, type AA
Automatic battery control: •
Automatic shutdown: 4 min / continuous operation
Battery service life: Approx. 45 hours with alkaline manganese battery
Power supply: USB
MISCELLANEOUS
Operating temperature: 0 °C to 50 °C
Dimensions: 65 mm x 120 mm x 19 mm (meter); 31 mm x 105 mm x 30 mm (probe)
Weight: 200 g without battery
Delivery contents: Aluminum case, GLUX 2 software, USB cable, battery, operating instructions, calibration protocol
