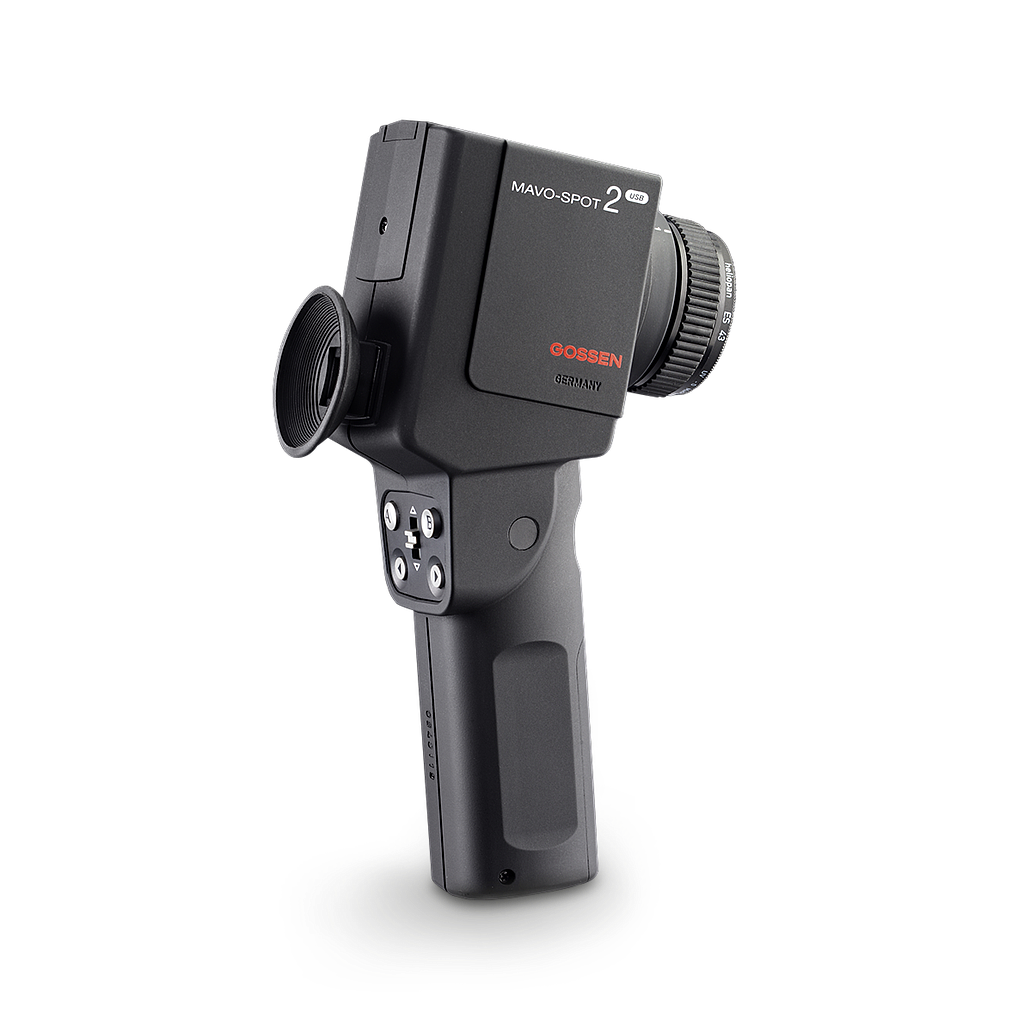

Type: Precision Luminance Meter
Classification: Class B DIN 5032-7 / EN 13032-1 appendix B
MEASURING FUNCTIONS
Luminance: 0.01 cd/m² … 99 990 cd/m² / 0.01 fL … 30 000 fL
Measuring ranges: 4
Measuring ranges selection: Automatic/Manual
Measuring rate: 2 per second
Measuring method: Distance measurement with 1° measuring angle, 1 m up to ∞, optional contact measurement with measuring probe
Measuring sensor: Silicon photocell with V(λ) filter
Measuring probe with tripod socket: •
Measured value memory: Up to 1000 individual values or 10 groups with 100 individual values each (switchable)
Error limit – V(λ) adapted (f1‘), typical: < 3 %
Error limit – overall error, typical: ≤ 8 %
Accuracy: ±2.5 % of read out ± 2 digit
OPERATION
Display: multifunctional LCD
Back-Light: •
Controls: 4 keys, 1 slide switch, 1 DIP-switch
Interface: USB 2.0
Software: GLUX 2
POWER SUPPLY
Battery: 2 x 1.5V mignon , Type AA
Automatic battery control: •
Automatic shutdown: 30 s
Battery service life: Approx. 5000 measurements
Voltage supply: USB
MISCELLANEOUS
Operating temperature: 0 °C to 50 °C
Dimensions: 190 mm x 90 mm x 57 mm
Weight: 400 g without battery
Delivery content: Aluminum case, GLUX 2 software, eyecup, lens cover, USB cable, battery, operating instructions, calibration protocol
