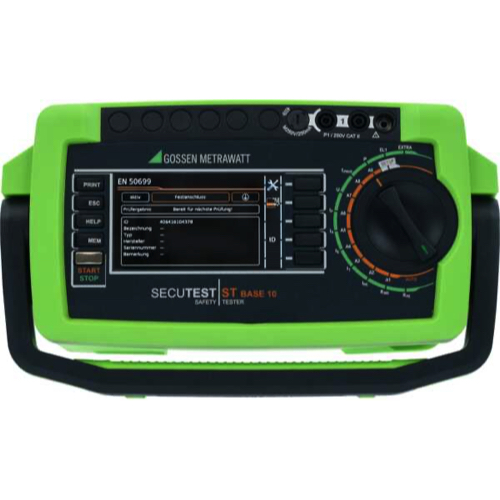

Base Instrument: Includes the SECUTEST ST BASE 10 specialized for testing electrical safety.
Standard Conformity: Integrated sequences for testing per VDE 0701-0702, IEC 62353, IEC 60974-4, EN 50678, and EN 50699.
Protective Conductor Resistance (RPE): Measured using a 200 mA test current with a range of 1 mΩ to 27.0 Ω.
Insulation Resistance (RINS): Test voltages adjustable from 50 V to 500 V DC; measuring range up to 300 MΩ.
Leakage Current Methods: Supports Direct, Differential, and Alternative (equivalent) leakage current measurement.
Medical Device Testing: Includes IA and IP (Leakage current from applied parts and Patient leakage current).
Active Function Test: Measures load current (up to 16 A), active power, apparent power, and power factor at the test socket.
PRCD Testing: Specialized sequences for measuring trip time (ta) of 30 mA PRCD-S and PRCD-K.
Database Expansion (DB+): Included (Z853R) for structuring large data sets via properties, buildings, floors, and rooms.
Medical Database (DB Comfort): Included (Z853S) featuring a dedicated medical test object entry and UDI field scanning.
Software License: Includes IZYTRONIQ Business Professional (S103S) for professional data management and reporting.
Barcode Scanner: Set includes a 1D barcode scanner connected via USB for rapid DUT identification.
Extension Cord Testing: Includes the EL1 Adapter (Z723A) for testing single-phase extension cables.
Display: 4.3" high-resolution, backlit TFT color multi-display with 24-bit color depth.
User-Defined Sequences: Ability to create up to 24 custom test sequences (up to 1200 steps total).
Data Storage: Massive internal memory for up to 50,000 data records.
Connectivity: 2x USB Master ports for external devices (scanner/printer) and 1x USB Slave for PC connection.
Automation Features: Includes "Auto-Store" for immediate saving and "AutoPrint" for automatic report generation.
Mechanical Protection: Lemongreen impact-resistant housing with an integrated rubber protector and IP40 rating.
Safety Category: Designed for 300 V CAT II; protection class I per EN 61140.
