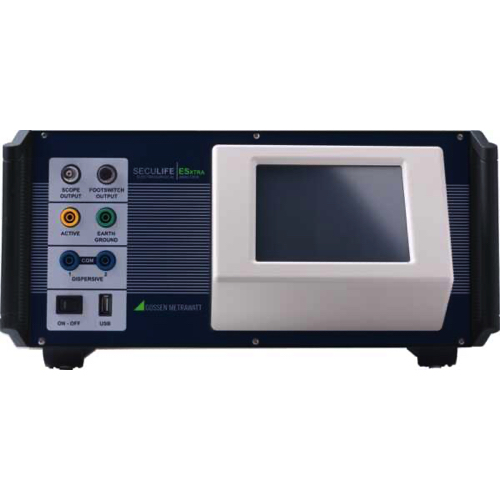

Device:
Display: 14.5 cm QVGA 18-bit color touch screen
Construction: 19.8 × 31.8 × 57.2 cm (Aluminum)
Weight: 14 kg
Face plate: Lexan/back printed
Operating range: 15 – 40°C
Storage range: -20 – 65°C
Connections:
Input: I/O 4 mm safety jacks
3 × USB, 1 × Serial, 1 × Ethernet, 1 × PS/2 (keyboard/mouse)
Output: 1 × BNC scope, Hypertronics 25-pin footswitch connector
Measurements:
A/D resolution: 14 bits
A/D speed: 64 MSPS
Bandwidth: 50 kHz – 10 MHz
Measurement accuracy: 1% of reading
Current Range: 2 – 700 mA RMS (low); 20 – 7000 mA RMS (high)
Current Resolution: 0.1 mA (low); 1 mA (high)
Power Range: up to 500 W
Power Resolution: 0.1 W
Crest factor Range: 1.4 – 500
Crest factor Resolution: 0.1
Voltage input:
Range: 0.20 – 70.0 mV RMS (low); 20 – 700.0 mV RMS (high)
Peak-to-peak: 0.0 – 1.0
Load Bank:
Relay: 10 kV, 5 A rated reed relays
Internal load: 0 – 6400 Ω; 1% non-inductive
Power rating:
1 Ω: 25 W
2 Ω: 50 W
4 Ω: 100 W
Remaining loads: 225 W
Load Bank Duty Cycle: 10 Seconds on, 30 Seconds off
Load Cooling: Dual 120 mm variable speed DC Fans
