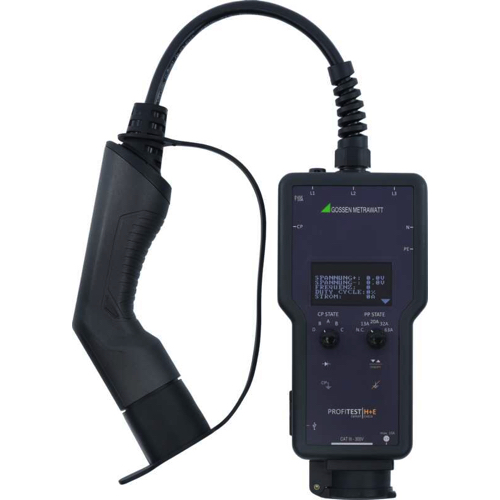

Test Analysis Standard
AC:
DIN EN IEC 61851-1; VDE 0122-1
Electric vehicle conductive charging system – Part 1: General requirements
Measurement of voltage values in all three phases and N
Test Parameters
Cables: 13 A; 20 A; 32 A; 63 A; No cable connected (N.C.)
Vehicle states: State A, state B, state C
Phases; tOFF (state E); Rotary field; Duty cycle; Frequency
Fault simulation: Diode test; CP-PE short-circuit (state E); PE fault (ground fault) with display of tripping time
Housing: 240 × 115 × 60 mm
Weight: 1180 g
Protection: IP 21
Display: Monochrome
Earthing contact socket:
Max. 10 A, 230 VAC
Fuse: T 10 A, 250 V, 20 × 5 mm
Measuring inputs: 4 mm; L1, L2, L3, N, PE, CP
CP signal output: ± 12 V, PWM signal
Interface: Micro USB port (for charging the
battery)
