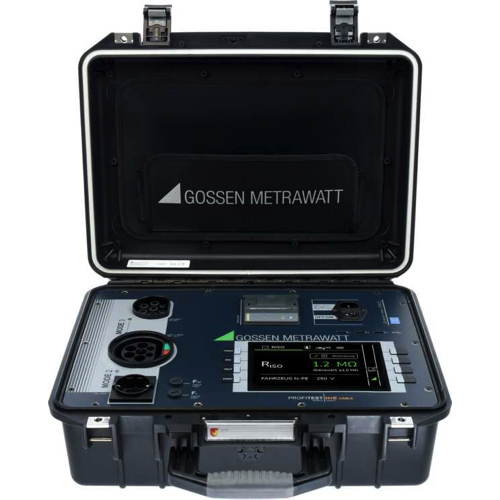

Type: Tester for EV charging cables (Mode 2 & Mode 3)
Standards: IEC 61851-1, IEC 62955, EN 61557-1/-2/-4
Applications: Standards-compliant testing of Mode 2 (IC-CPD) and Mode 3 EV charging cables, mobile field testing, service & quality control
Key Test Functions:
Automatic test sequences (Mode 2 & Mode 3)
Protective conductor continuity (RPE, ≥200 mA / 3 mA)
Insulation resistance (RISO), 250 V / 500 V DC
RCD AC tripping current & time (10 / 20 / 30 mA)
RDC-DD test, 6 mA DC (IEC 62955)
CP signal & EV status simulation (A, B, C, E)
PP resistance measurement (cable current coding)
Voltage measurement (L/N/PE)
Differential leakage current measurement (IPE)
Pass / Fail evaluation with automatic report generation
User Interface: 7" color TFT LCD, 1280 × 800, function keys & USB keyboard
Printer: Integrated thermal printer
Data & Storage:
Internal memory: 1000 measurements
USB ports: data transfer, keyboard, barcode scanner
Power Supply: 220–230 V AC, 50/60 Hz
Safety Category: CAT II 300 V
Protection Class: Class I
Ingress Protection: IP40 (tester), IP67 (transport housing)
Operating Temperature: 0°C ~ +40°C
Storage Temperature: –30°C ~ +60°C
Humidity: Max. 80% RH, non-condensing
Dimensions (W × H × D): 469 × 177 × 372 mm
Weight: approx. 8.8 kg
