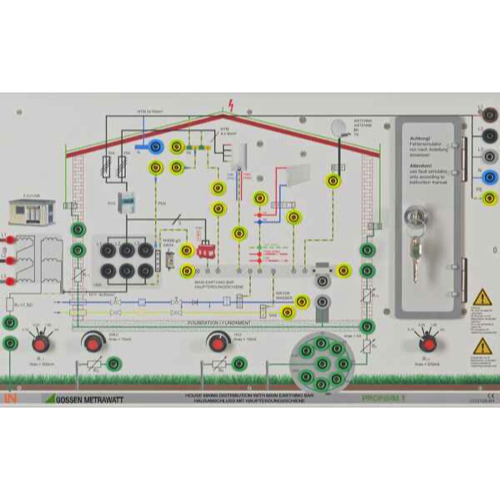

Gossen Metrawatt PROFiSIM 1 Testing of Electric Installations and Systems (3 × 230/400 V; 50/60 Hz)

Simulation of a Building Installation

Simulation of external lightning protection:

R1, R2 = 0.1 Ω, 0.2 Ω, 1.0 Ω, ∞, Imax. = 200 mA

Earth simulation: RE = 0.5 Ω, 1.0 Ω, 2.0 Ω, 5.0 Ω, 10 Ω, 50 Ω, 100 Ω, Imax. = 5 A

Simulation of the auxiliary earth electrode: RH = 0 ... 1 kΩ, Imax. = 10 mA

Simulation of the earth probe: RS = 0 ... 50 kΩ, Imax. = 10 mA

Simulation of the operational earth electrode: RB = 1.5 Ω, Imax. = 10 A

Connection panel for downstream sub-distributors of a consumer system

Connection Values

Mains connection: 16 A CEE plug

Connector cable: Approx. 2.5 m

Nominal voltage: 3 x 230/400 V

Frequency: 50/60 Hz

Protection category: I

Mechanical Design

Dimensions: 297 x 456 x 80 mm

Weight: Approx. 2.2 kg

Inputs/outputs: 4 mm safety sockets

Ambient Conditions

Ambient temperature: Max. +35 °C

Relative humidity: Max. 60%, condensation is ruled out

Fault Simulation: Fault simulator with 12 fault options via switches
