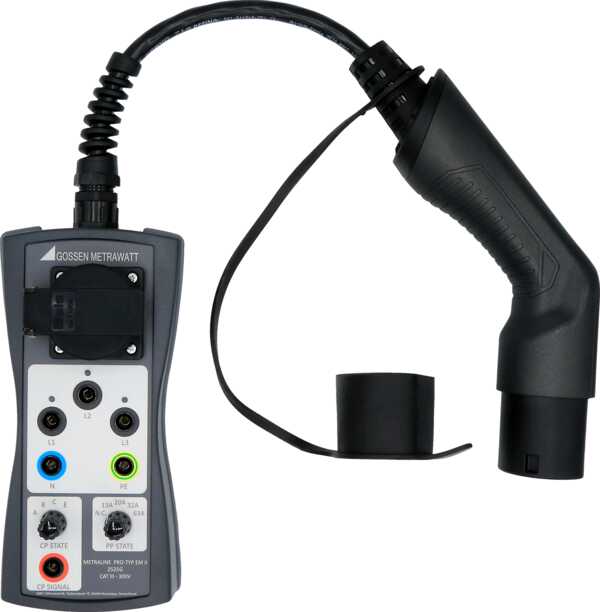

Test Adapter Type: Single-phase and 3-phase test adapter for testing EV charging stations
Compatible Instruments: PROFITEST MTECH+ (IQ), PROFITEST MXTRA (IQ)
Application Standard: IEC 61851-1 electric vehicle charging system testing
Vehicle Simulation (CP): Simulation of vehicle states A, B, C, and E via rotary switch
Cable Simulation (PP): Simulation of charging cable coding for 13 A, 20 A, 32 A, and 63 A
Fault Simulation: Short-circuit simulation between CP and PE
Phase Indication: LED indication of active phase voltages (single or three-phase)
PWM Signal Interface: CP socket for PWM signal analysis
Charging Cable Testing: Supports testing of charging stations with permanently attached cable
Connection Interface:
4 mm safety sockets: L1, L2, L3, N, PE
Additional earthing contact socket (feature specific to Z525G model)
Function Purpose: Simulation of electric vehicle to enable charging station output for testing
Protection Standard: IEC 61010-1, IEC 61851-1, EN 60529 compliant
Operation Type: Charging station functional testing, commissioning, maintenance, and inspection
Supported System Voltage: Up to 400 V AC, 3-phase
Supported Frequency: 50 Hz
Maximum Supported Power: 2.9 kVA
