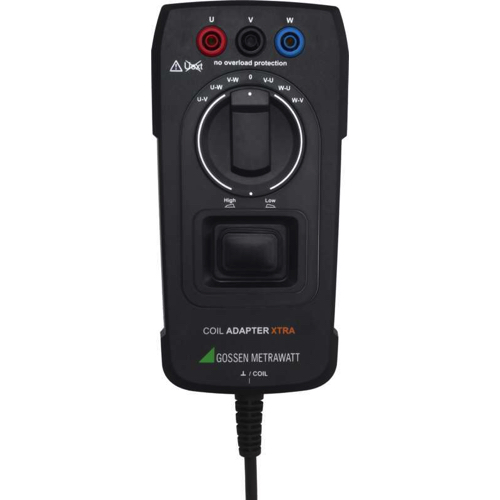

Application: Inter-turn short circuit detection (Surge Test) for coils and windings.
Inductance Range: 10 μH to 5 H (at 100 Hz).
Surge Voltage: 1000 V (in combination with METRAHIT IM series).
Compatible Power Ratings: Universally suitable for electric machines from approx. 160 VA to 80 MVA (3-phase machines at 400 V)
Connection: Simultaneous connection to 3 coils (U, V, W terminals).
Operation Mode: Semi-automatic measurement sequence.
Switching: Rotary switch for coil selection and automatic polarity reversal (to compensate for remanence effects).
Compatibility:
METRAHIT IM XTRA
METRAHIT IM E-DRIVE
Interface: Combined connector plug for METRAHIT IM with automatic rotary switch position detection.
