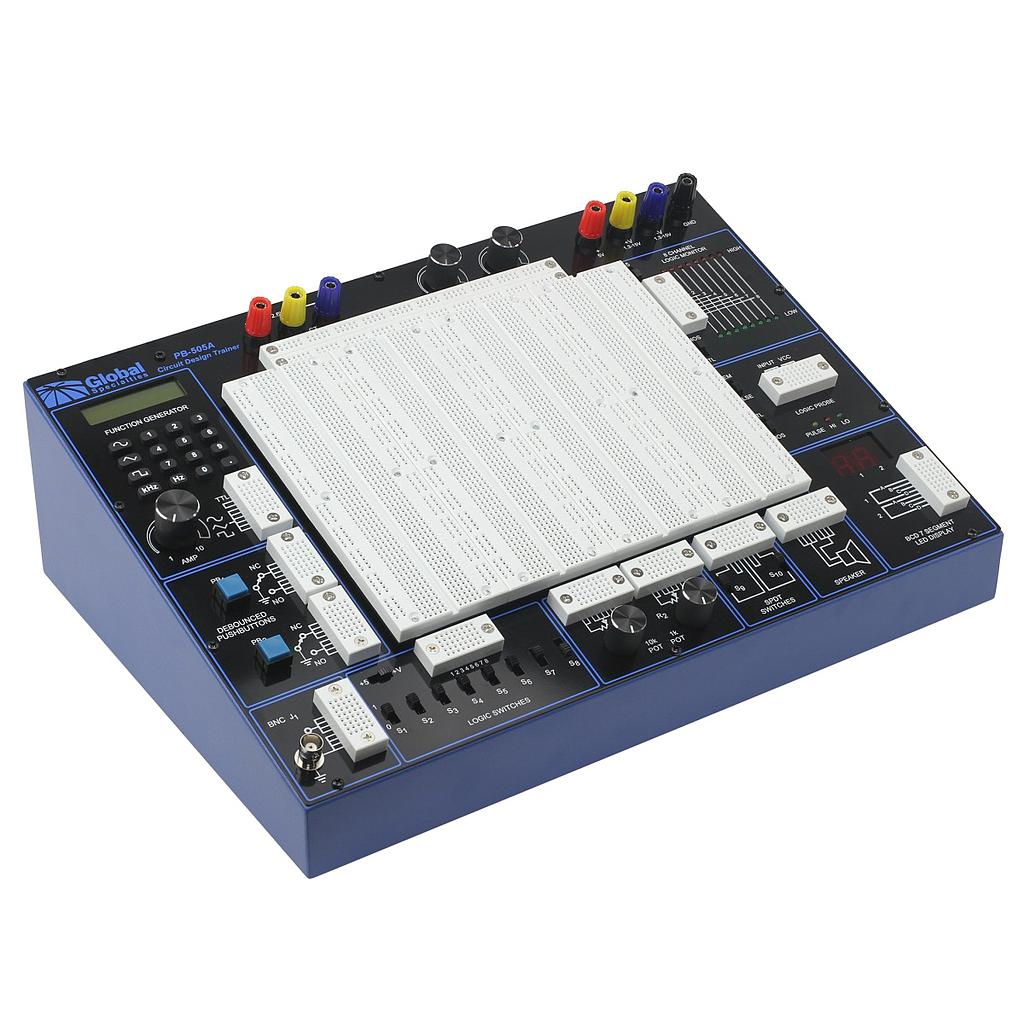

Power Source: AC Line: 115 VAC @ 60 Hz or 230 VAC @ 50 Hz (switchable)
Power Supplies
- Fixed DC Binding Post: +5 VDC Variable DC Binding Posts (2): ±15 VDC
- Fixed AC Binding Posts (2): 12.6 VAC center-tapped
Digital Function Generator
- Frequency Range: 100 kHz, two ranges
- Output Voltage: 10 Vp-p into 600 Ω load
- Waveforms: Sine, Square, Triangle & TTL
Pulsers: 2 Pushbutton-operated pulsers
Logic Switches: 8 Logic Switches
Logic Probe: Detects Logic High, Logic Low and Single Shot events
SPDT Switches: 2 SPDT Switches
Logic Indicators: 16 LEDs: 8 red for logic high 8 green for logic low
Connectors: 2 BNC
Potentiometers: Two potentiometer: 1 kΩ and 10 kΩ
Speaker: On board
Displays: 2 BCD to 7-Segment display circuits, 2 red LED and decoder/driver circuitry
Breadboards: Removable socket plate (PB-4) with 3,360 tie-points with 200 additional bus strip
