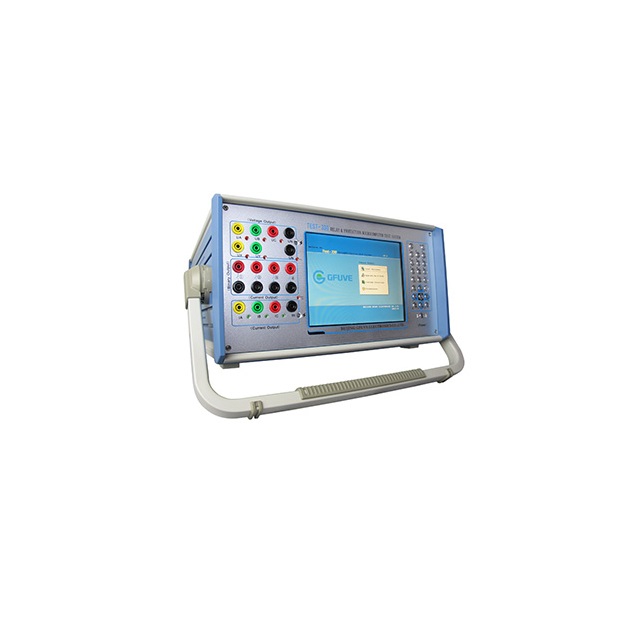

GFUVE TEST-330 Three Phase Relay Protection Microcomputer Test System (AC220V±10%; 50/60Hz±10%)

ELECTRICAL PARAMETERS

Power voltage: AC220V±10% or AC110V±10%, 50/60Hz±10%

Time measurement: 0.1ms-999999.999s

AC current output　

Phase current output (effective value): 3 x 0-30A

Maximum power output: 260VA/phase

Maximum parallel current output (effective value): 0-90A

Long-term allowable working value of phase current (effective value): >10A

Allowable working time of maximum current: >11s

Accuracy class: <±0.2%

AC voltage output　

Phase voltage output (effective value): 5 x 0-130V

Line voltage output (effective value): 0-260V

Maximum power output: 70VA/phase

Accuracy class: <±0.2%

DC current output　

Output range: -10 ~ 10A or 3 x 0 ~ ±10A

Maximum power output: 200VA

Accuracy class: <±0.2%

DC voltage output　

Output range: 0-300V or 5 x 0 ~ ±130V

Maximum output power: 130VA

Accuracy class: <±0.2%

DC current output　

Idle contact: 1-20mA, 24V (DC)

Electric potential contact: 250V/0.5A (DC)

Binary output　

Idle contact: 250V/0.5A (DC)

Rated output　

Frequency error: <±0.01Hz

Phase error: <±0.2°

Waveform distortion: <±0.3% (fundamental wave)

Time error: <40µs

Output frequency: 0-1050Hz

Superposed harmonic wave: 0-21 times

MECHANICAL PARAMETERS　

Dimensions (L×W×H) (mm): 360x195x375

Weight (kg): 16.6

ENVIRONMENTAL CONDITIONS

Use range: 0°C ~ 45°C

Storage range: -25°C ~ 70°C
