ELECTRICAL PARAMETERS
Ratio: 1000: 1 or 2000:1 (customized)
Accuracy class: 0.1%, 0.2%, 0.5%
Primary current: 0 - 1000A AC
Secondary current: 1mV/A AC, 5mV/A or (customized)
Max. Cont. Input current: 1200A
Over voltage category: CAT III 600V
Output signal (AC current): 333mV, 500mV,1V,2V,5V AC at nominal input current
AC Accuracy(1000A Range)
0-10A: ≤0.5%
10-100: ≤0.2%
10-1200A: ≤0.1%
AC Phase Shift(1000A Range)
0-10A: ≤0.5°
10-100: ≤0.2°
10-1200A: ≤0.1°
Frequency range: 40Hz-2000Hz
Dielectric strength: 3KV 50Hz/60Hz at 1 minute
Temperature range: -20°C to +55°C
Output: 2.5 meter cable with D01 connector
Max. voltage not insulated conductors: 600 V
Standard: EN 61010-1, EN 61010-2-032, IEC60044-1

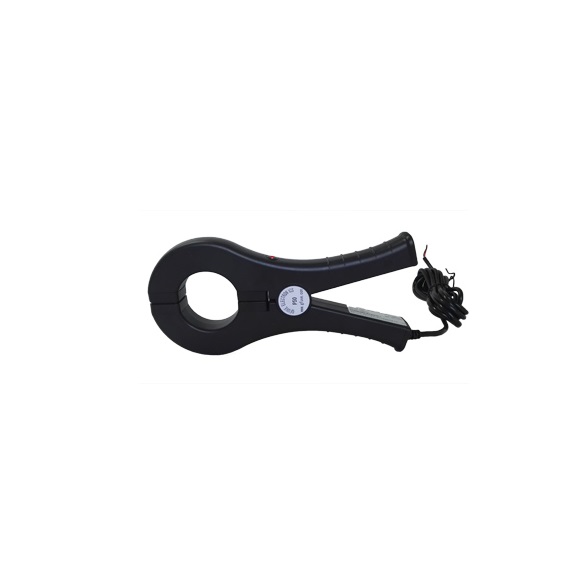

Installation: Clamp type
Output mode: Lead output (2.5m)
MECHANICAL PARAMETERS
Dimensions (L x W x H)(mm): 102.9 x 219.6 x 28
Weight (g): 550
Holding wire diameter (mm): φ50
Max. jaw opening (mm): 50
Color: Gray or blue
Material: PC+ABS+Polycarbonate, UL94 V0
