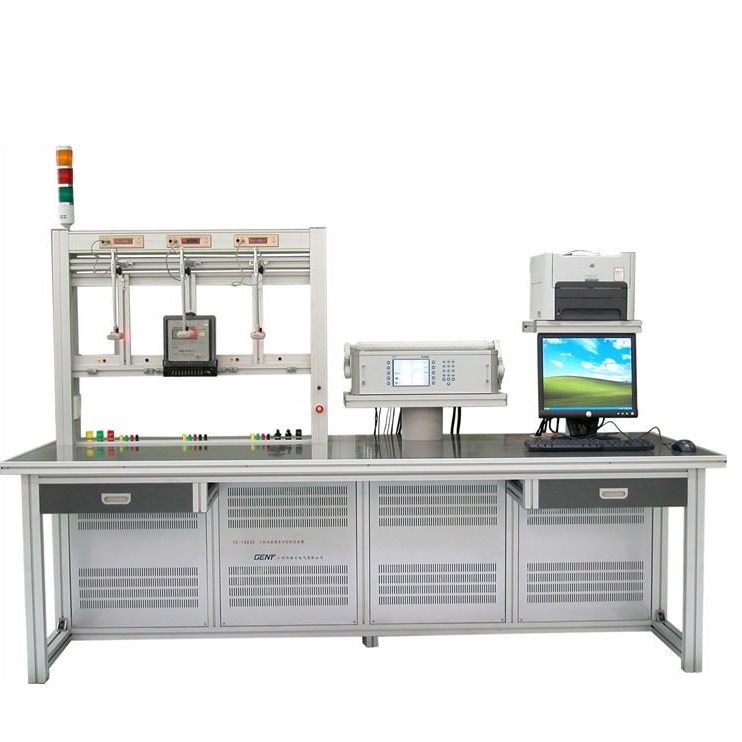

Structure composition
- Number Of Meter Positions: 3/6
- Accuracy Class: 0.01%
- Power Source: YCS-103
- Reference Standard Class: 0.01%
- Scanning Head: YCG-S Series
Voltage source
- Test voltage output(Phase-Neutral): 3x(40V~300V)(or customized)
- Power of the voltage output: 3x200VA
- Resolution: Better than 0.001%of full scale value of range
- Stability: Better than 0.002%/h (integration time 150s)
- Load regulation from 0~max.load: Better than 0.01%
- Distortion factor: Better than 0.05%for linear resistance load
- Harmonic: 2nd-41st free programmable
Current source
- Test current output: 3x(1mA-120A/200A)
- Power of the current output: 3x300VA
Phase angle
- Range: 0~360°
- Resolution: 0.001Hz
Frequency: Resolution: 0.001Hz
Error display
- Type of error display: Red LED
- Resolution of error displays: 8 digitals
Dimension(LxWxH)
- Main: 1830x1030x1800mm
- Plywoodcase: 1930x1130x2000mm
Weight
- Main: 330kg
- Plywoodcase: 413kg
