Number of operators: 1 person or no one
model: Floor-standing integrated
Dimensions: L*W*H——785*670*1325(mm)
weight: 170KG
Operating area: Protective
Reclaiming method: Vacuum suction
Number of electric batches: 1PCS
Number of feeders: 1PCS
Number of work stations: 2PCS
Fixture: custom made
Gas source: 0.4-0.8MPa, oil-free, dry
power supply: 220V 50HZ
power: 300W
Applicable screw specifications: Below M3
effectiveness: 1.0s-1.2s/piece
NPL ratio: 1‰ or less (in number of screws)
speed: X, Y, Z-800, 800, 800mm/s
Precision: +/-0.02mm
Applicable product size: L*W*H--120*200*20(mm)
Alarm item: Sliding teeth, leaking, floating height (optional)
Electric batch torque: Adjustable
Operation interface: touch screen
Coordinate storage: 60
Number of locks: 290
control unit: 4 axis motion controller
power: Stepper motor / servo motor
Transmission method: Precision timing belt / roller screw
Operating mode: Front/front, front/back
Model switching time: Within 30 minutes (take 100 pieces of screws as an example)
Data communication: USB port export (optional)
annex: Coordinate adjustment handle

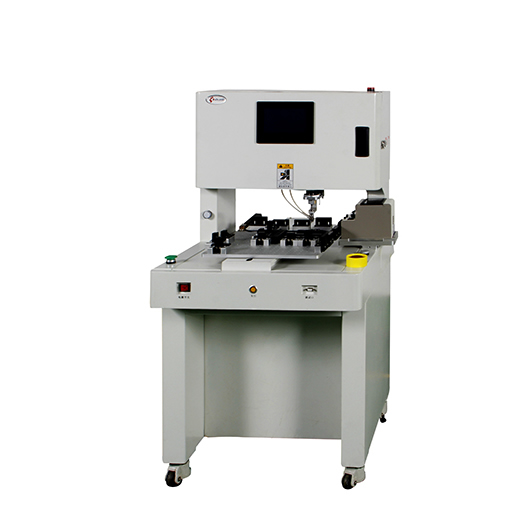

-This machine is a floor-standing one-piece machine. It is compact and can be placed flexibly on the production line.
It is suitable for screws below M3. For the tooth type, the screw length to diameter ratio is not strictly required.
Working mode is single player mode and unmanned mode, free to choose according to needs.
-Efficient: 1.0s-1.2s/piece
-can completely replace the manual lock screw station,
-cost - effective,
-versatile,
-can store a variety of products, screw coordinates are
-stable and reliable
-Easy to learn and use
