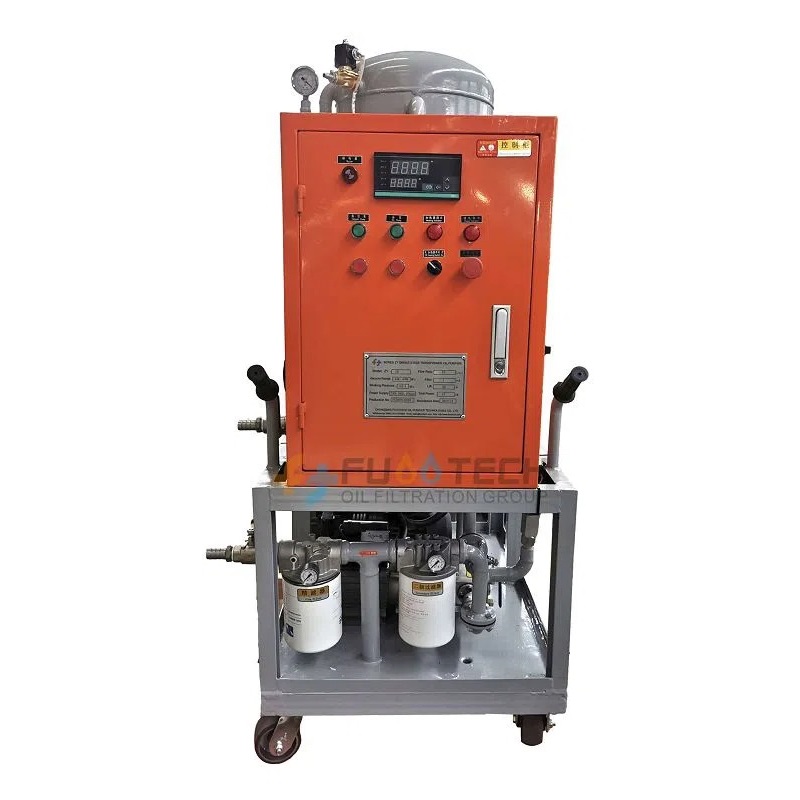

Fuootech ZY-50 Single-stage Vacuum Transformer Oil Purifier (3000 LPH)

Flow rate: 3000LPH

Working vacuum: -0.06～-0.095 MPa

Working pressure: ≤0.4 MPa

Working without Trouble: ≥4000 H

Continuous Working: ≥150 H

Temperature range: 20 ～ 80℃

Power supply: 380V, 3 phase, 50 Hz (or as per your requirements)

Working noise: ≤ 80 dB(A)

Heating power: 30 KW

Total power: 33.5 KW

Inlet/Outlet caliber: φ32 mm

Weight: 300 Kg

Size: 1200×950×1580 mm

After Filtration (Performance)

Moisture (Water Content) ≤ 8 PPM

Gas Content: ≤0.3% (Vol)

Impurities Degree (Filtration precision): ≤ 5 micron

Breakdown Voltage (Dielectric): ≥60 ~ 68 KV

Cleanliness: ≤NAS 1638 Grade 6
