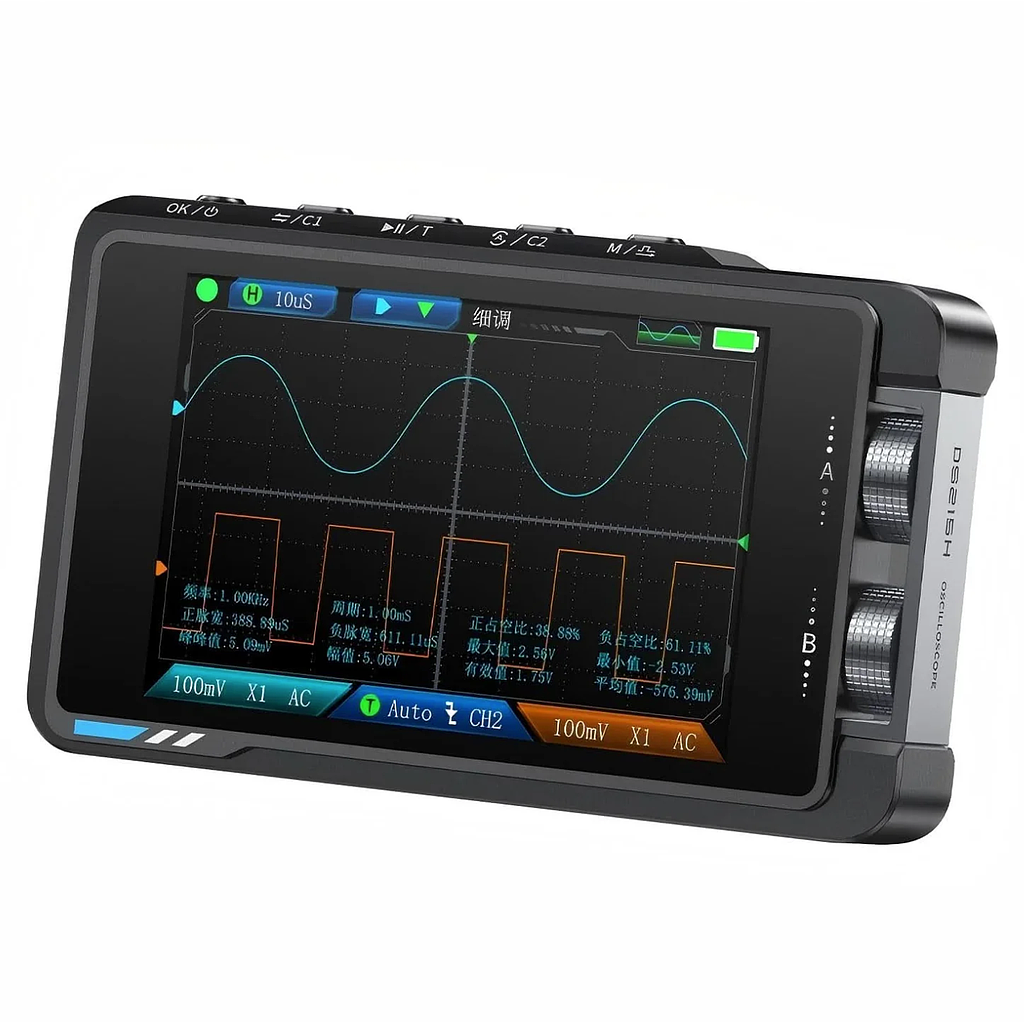

FNIRSI DS215H Dual Channel Digital Oscilloscope DDS Function Singal Generator (2CH; 250MSa/s; 50MHz; multiple waveform)

Basic Parameters:

Display: 3.5 inches IPS high-definition color screen

Backlight: Brightness Adjustable

Power Supply: TYPE-C (5V/1A)

Battery: 1500mAh

Languages: 中文, English, Deutsch, Português, 日本語, Español, 한국인, Pyccкий

Product Size: ≈66x110x19.5mm

Product Weight: ≈138g

Oscilloscope Parameters:

Channel: Dual channel

Bandwidth: 50MHz

Real-time Sampling Rate: 250MSa/s

Storage Space: 14M

Time Base Range: 20ns/div - 20s/div

Vertical Sensitivity: 10mV/div - 10V/div

Vertical Resolution: 8 bits

Input Impedance: 1MΩ

Waveform Display Mode: Scroll

Measurement Data: Cycle, Freq, Vpp, Max, Min, Avg, RMS, Amp, Dduty cycle, Pulse width

Probe Attenuation Factor: 1x/10x

Input Coupling: AC/DC

Triggaer Type: Rising edge/Falling edge

Peak Voltage: ±400V

Trigger Level Range: 8 grids (positive and negative)

Trigger Mode: Auto / Normal / Single

Signal Generator Parameters:

Output Waveform: Supports multiple waveform outputs

Waveform Frequency: 0-50KHz

Square Wave Duty Cycle: 0-100%

Waveform Amplitude: 0.1V-3.0V
