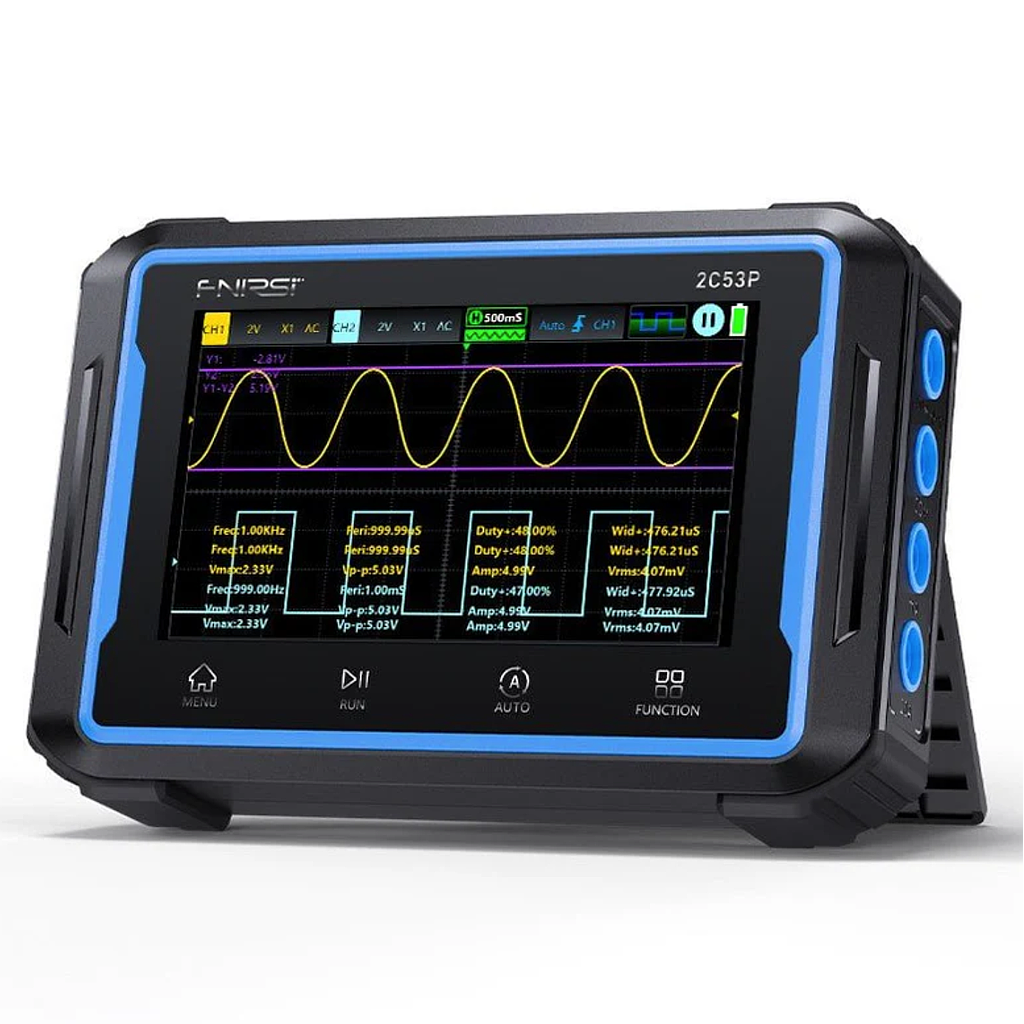

FNIRSI 2C53P Dual Channel Tablet Touchable Oscilloscope (50MHz; 250MSa/s; dual channel)

Basic Parameters

Screen Size & Resolution: 4.3 Inch (480*272 pixels)

Screen Material: Surface tempered glass + touch screen made of glass + IPS color screen

Backlight: Backlight brightness can be set

Power Supply: TYPE-C (5V/2A)

Battery: 4000mAh lithium battery

Language: Chinese, English, Pyccкий, にほんご, español, Português, Deutsch, 한국인

Product Size: ≈145x98x35mm

Product Weight: ≈360g

Oscilloscope Parameters

Channel: Dual channel

Bandwidth: 50MHz

Real-time Sample Rate: 250MSa/s

Storage Depth: Up to 64kByte

Input Resistance: 1MΩ

Time Base Range: 10ns/div - 10s/div

Vertical Sensitivity: 10mv/div - 10v/div

Maximum Measured Voltage: ±400V

Vertical Resolution: 8 bits

Probe: 1x/10x

Storage Space: 13M

Bandwidth Limit: Support 20MHz limit

Trigger Mode: AUTO / Normal / Single

Trigger Type: Rising / Falling edge

Trigger Level: 8 div (positive/negative)

Waveform Display Mode: XY / YT / Scroll

Input Coupling: AC/DC

Measured Data: Prd, Freq, Vpp, Vmax, Vmin, Vrms, Vavg, Vamp, Du+, Du-, Wid+, Wid-

Math Alculations: 1+2, 1-2, 1*2, 1/2, -1, -2, |1|, |2|, FFT

Save Waveform Screenshot: Yes

USB Computer Transfer :Yes

Multimeter Parameters

DC Voltage

Range: 1.9999V / 19.999V / 199.99V / 1000.0V

Accuracy: ±(0.5%+3)

AC Voltage

Range: 1.9999V / 19.999V / 199.99V / 760.0V

Accuracy: ±(1%+3)

DC Current

Range: 19.999mA / 199.99mA / 1.9999A / 9.999A

Accuracy: ±(1.2%+3)

AC Current

Range: 19.999mA / 199.99mA / 1.9999A / 9.999A

Accuracy: ±(1.5%+3)

Resistance

① Range: 19.999MΩ / 1.9999MΩ / 199.99KΩ / 19.999KΩ

Accuracy: ±(1.5%+3)

② Range: 1.9999KΩ / 199.99Ω

Accuracy: ±(0.5%+3)

Capacitance

① Range: 999.9μF / 99.99μF / 9.999μF / 999.9nF / 99.99nF / 9.999nF

Accuracy: ±(2.0%+5)

② Range: 9.999mF / 99.99mF

Accuracy: ±(5.0%+20)

Temperature

Range: (-55~1300°C) / (-67~2372°F)

Accuracy: ±(2.5%+5)

Diode: Yes

Continuity Test: Yes

Signal Generator Parameters

Channel: Single channe!

Frequency: 0-10MHz (Sine wave: 10MHz, other waveforms 5MHz)

Amplitude: 0.1-3.0V

Square Wave Duty Cycle: 0-100%

Signal Type: sinusoidal wave, square wave, sawtooth wave, half wave, full wave, positive step wave, negative step wave, DC signal, exponential rise, exponential fall, multi-audio, and sync pulse

Packing list

2C53P Oscilloscope

Alligator clip probe

P6100*2

Product manual

Multimeter probe

Data cable

Manual
