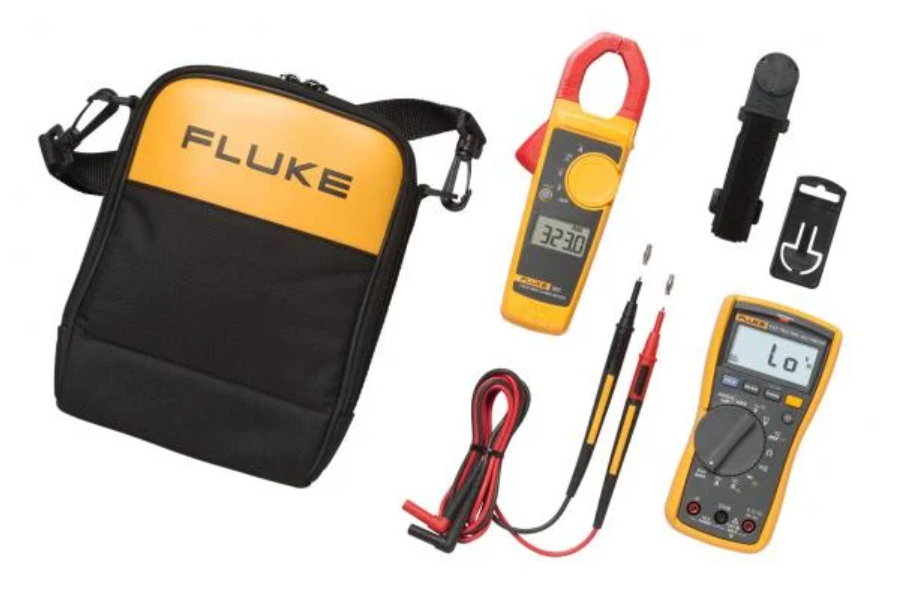

FLUKE FLUKE-117/323 KIT Multimeter and clamp meter combo kit (FLUKE-323, 400A AC TRUE RMS)

Fluke 117 Digital Multimeter

DC millivolts

Range/Resolution: 600.0 mV / 0.1 mV

Accuracy: ±([% of reading] + [counts]): 0.5% + 2

DC volts

Range/Resolution

6.000 V / 0.001 V

60.00 V / 0.01 V

600.00 V / 0.1 V

Accuracy: ±([% of reading] + [counts]): 0.5% + 2

Auto volts

Range/Resolution:; 600.0 V / 0.1 V

Accuracy:

2.0% + 3 (DC, 45 Hz to 500 Hz)

4.0% + 3 (500 Hz to 1 kHz)

AC millivolt True RMS

Range/Resolution: 600.0 mV / 0.1 mV

Accuracy

1.0% + 3 (DC, 45 Hz to 500 Hz)

2.0% + 3 (500 Hz to 1 kHz)

AC volts True RMS

Range/Resolution

6.000 V / 0.001 V

60.00 V / 0.01 V

600.0 V / 0.1 V

Accuracy:

1.0% + 3 (DC, 45 Hz to 500 Hz)

2.0% + 3 (500 Hz to 1 kHz)

Continuity

Range/Resolution: 600 Ω / 1 Ω

Accuracy: Beeper on < 20 Ω, off > 250 Ω; detects opens or shorts of

500 μs or longer.

Ohms

Range/Resolution

600.0 Ω / 0.1 Ω

6.000 kΩ / 0.001 kΩ

60.00 kΩ / 0.01 kΩ

600.0 kΩ / 0.1 kΩ

6.000 MΩ / 0.001 MΩ

Accuracy: 0.9% + 1

Range/Resolution: 40.00 MΩ / 0.01 MΩ

Accuracy: 5% + 2

Diode test

Range/Resolution: 2.00 V / 0.001 V

Accuracy: 0.9% + 2

Capacitance

Range/Resolution

1000 nF / 1 nF

10.00 μF / 0.01 μF

100.0 μF / 0.1 μF

9999 μF / 1 μF

100 μF to 1000 μF

Accuracy: 1.9% + 2

Range/Resolution: > 1000 μF

Accuracy: 5% + 20%

Lo-Z capacitance

Range: 1 nF to 500 μF

Accuracy: 10% + 2 typical

AC amps True RMS (45 Hz to 500 Hz)

Range/Resolution

6.000 A / 0.1 A

10.00 A / 0.01 A

Accuracy:

1.5% + 3

20 A continuous overload for 30 seconds max

DC amps

Range/Resolution: 6.000 A / 0.1 A10.00 A / 0.01 A

Accuracy

1.0% + 3

20 A continuous overload for 30 seconds max

Hz (V or A input)

Range/Resolution

99.99 Hz / 0.01 Hz

999.99 Hz / 0.1 Hz

9.999 Hz / 0.001 Hz

50.00 Hz / 0.01 Hz

Accuracy: 0.1% + 2

Fluke 323 True RMS Clamp Meter

AC current

Range: 400.0 A

Accuracy:

2% ±5 digits (45 Hz to 65 Hz)

2.5% ±5 digits (65 Hz to 400 Hz)

AC voltage

Range: 600.0 V

Accuracy: 1.5% ±5 digits

DC voltage

Range: 600.0 V

Accuracy: 1.0% ±5 digits

Resistance

Range/Resolution: 400.0 Ω/ 4000 Ω

Accuracy: 1.0% ±5 digits

Continuity: ≤ 70 Ω

AC response: True RMS

Data hold: Yes
