Sensors
Frequency band: 2 kHz to 100 kHz, 2 kHz to 52 kHz
Detection range: 0.5 to > 120 meters (1.6 to > 393 feet)
Field of view (FOV): 63° ± 5°
Nominal frame rate: 25 FPS
Built-in digital camera (visible light)
Field of view (FOV): 63° ± 5°
Focus: Fixed lens
Zoom: 3 x digital zoom
Resolution: 5 MP
Display
Size: 7" LCD with backlight, sunlight readable
Resolution: 1280 x 800 (1,024,000 pixels)
Touchscreen: Capacitive
Acoustic image: SoundMap™ image
Image storage
Storage capacity: 32 GB (> 8,000 pictures / > 1,600 videos)
Image format: Blended visual and SoundMap™ .JPG or .PNG
Video format: Blended visual and SoundMap™ .MP4
Video length: Up to 5 minutes
Digital export: USB-C for data transfer
Acoustic measurements
Measurement range (typical)
12.1 to 114.6 dB SPL (± 1 dB SPL 2 kHz)
4.4 to 101.2 dB SPL (± 2 dB SPL 19 kHz)
12.8 to 119.2 dB SPL (± 1 dB SPL 35 kHz)
19.8 to 116.1 dB SPL (± 3 dB SPL 52 kHz)
41.4 to 129.0 dB SPL (± 1 dB SPL 80 kHz)
54.4 to 135.5 dB SPL (± 1 dB SPL 100 kHz)
Classification and quantification
LeakQ™:Leak size scale, Leak rate, and Leak cost estimation
PDQ Mode™: Partial discharge type classification
MecQ™: Mechanical anomaly detection
PDQ ModAuto max/min dB gain: Auto or manual, user selectable
Frequency band selection: User selectable through user-made presets or manual entry
Battery
Battery: Rechargeable and field replaceable Li-ion battery
Battery life: 6 hours
Battery charging time: ~3,5 hours
Battery charging system: Internal (USB-C)
Software
Ease of use: Intuitive user interface
Trend graphs: Frequency and dB scale
Spotmarkers: dB level reading at center point of image
General specifications
Tripod holder / connector: Yes: 1/4"-20
USB: 2 x USB-C
Wireless: Wifi
Operating Temperature: -10 to 45 °C (14 to 113 °F)
Storage Temperature: -20 to 70 °C (-4 to 158 °F) without batteries installed
Relative Humidity: 10 to 95 % non-condensing
Size (H x W x L): 186 mm x 322 mm x 68 mm (7.3 inches x 12.7 inches x 2.7 inches)
Weight (battery included): 2.0 kg (4.4 pounds)
Ingress Protection (IP): IP40
Self-diagnostic Notification: Array-health test to identify when microphone array needs attention
Supported Languages: Dutch, English, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
RoHS Compliant: Yes
Safety
General Safety: IEC 61010-1
Electromagnetic Compatibility (EMC):
International: IEC 61326-1: Portable Electromagnetic Environment, CISPR 11: Group 1, Class A
Korea (KCC): Class A Equipment (Industrial Broadcasting and Communication)
USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103

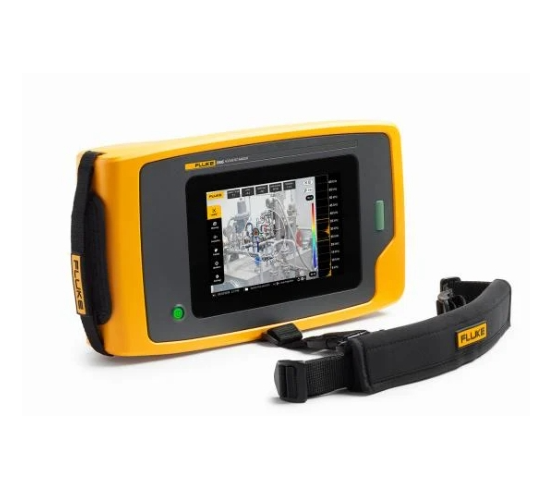

Included: Acoustic Imager; Power supply; Lithium-ion smart battery pack; USB-C cable; Rugged hard carrying case; Array sensor cover; Adjustable hand strap, and adjustable neck strap
