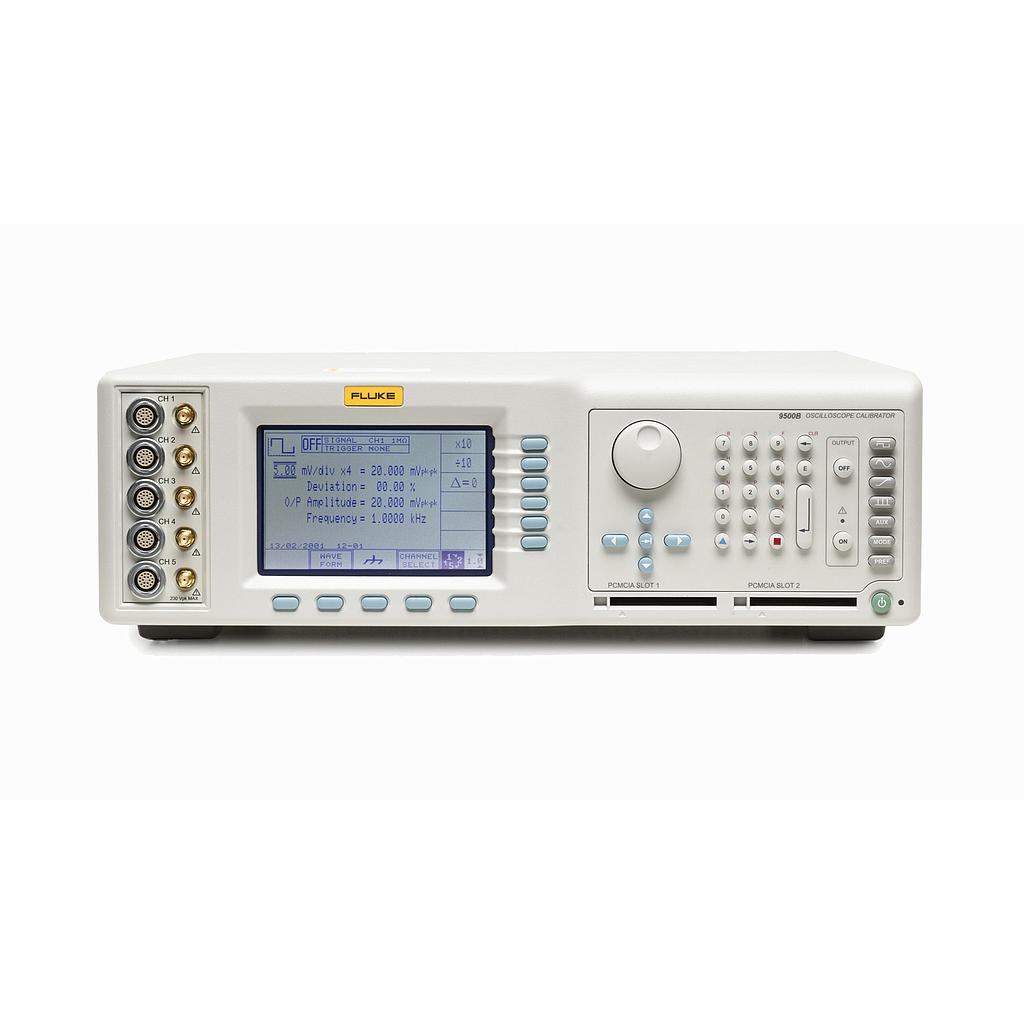

Fluke 9500B/1100 Oscilloscope Calibrator (1100Mhz)

Name: Fluke 9500B/1100 Oscilloscope Calibrator (1100Mhz)
Brand: Fluke (Calibration)

ManufacturerFluke (Calibration)(View more products from this manufacturer)

Model9500B/1100

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Frequency: 0.1 Hz to 1100 MHz
output on 5 channels

Datasheet

Option
9510: Active Head with 1.1 GHz and 500 ps pulse capability
9500-60: Soft Carrying Case
9500-65: Hard Transit Case (Requires Option 60)

DC Voltage

Amplitude

	± 1 mV to ± 200V into 1M Ω
	± 1 mV to ± 5V into 50 Ω

Accuracy

± (0.025% + 25 µV)

Ranging

1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous

Deviation

± 11.2%

Squarewave

Amplitude

Range:	40 µV to 200V pk-pk into 1MΩ
	40 µV to 5V pk-pk into 50Ω
Polarity:	Positive, negative or symmetrical about ground
Accuracy (10 Hz to 10 kHz):	<1 mV ± (1% + 10 µV)
	1 mV-21 mV ± (0.10% + 10 µV)
Ranging:	1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous
Deviation:	± 11.2%

Rise/Fall Time

	<100V <150 ns
	>=100V <200 ns

Aberrations

<2% peak for first 500 ns

Frequency

Range:	10 Hz to 100 kHz
Accuracy:	± 0.25 ppm
Ranging:	1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous

Low-Edge Pulse

Amplitude

Range:	5 mV to 3V pk-pk into 50Ω
Accuracy:	+50 ps to -150 ps
Ranging:	1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous

Rise/Fall Time

500 ps return to ground

Mk/Sp Ratio

1:9

Aberrations (into VSWR 1.2:1)

	<± pk in 8Ghz
	<± 1.5% pk in 3Ghz
	(First 10ns)

Frequency

Range:	10 Hz to 2 Mhz
Accuracy:	± 0.25 ppm
Ranging:	1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous

High-Edge Pulse

Amplitude

Range:	1mV to 200V pk-pk into 1 MΩ
	1mV to 5V pk-pk into 50Ω
Accuracy:	± 3%
Ranging:	1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous

Rise/Fall Time

	<100V <150 ns
	>=100V <200 ns

Mk/Sp Ratio

1:1

Aberrations

<2% peak for first 500ns

Frequency

Range:	10 Hz to 100 kHz
Accuracy:	± 0.25 ppm
Ranging:	1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous

<td width="150" style="width:112.5pt;border:solid windowtext 1.0pt;mso-border-alt: solid windowte

Fast-Edge (only available on 9530 Active Heads)

Amplitude

Range:	5 mV to 3V pk-pk into 50Ω
Accuracy:	± 3%
Ranging:	1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous

Rise/Fall Time

150 ps return to ground

Mk/Sp Ratio

1:9
