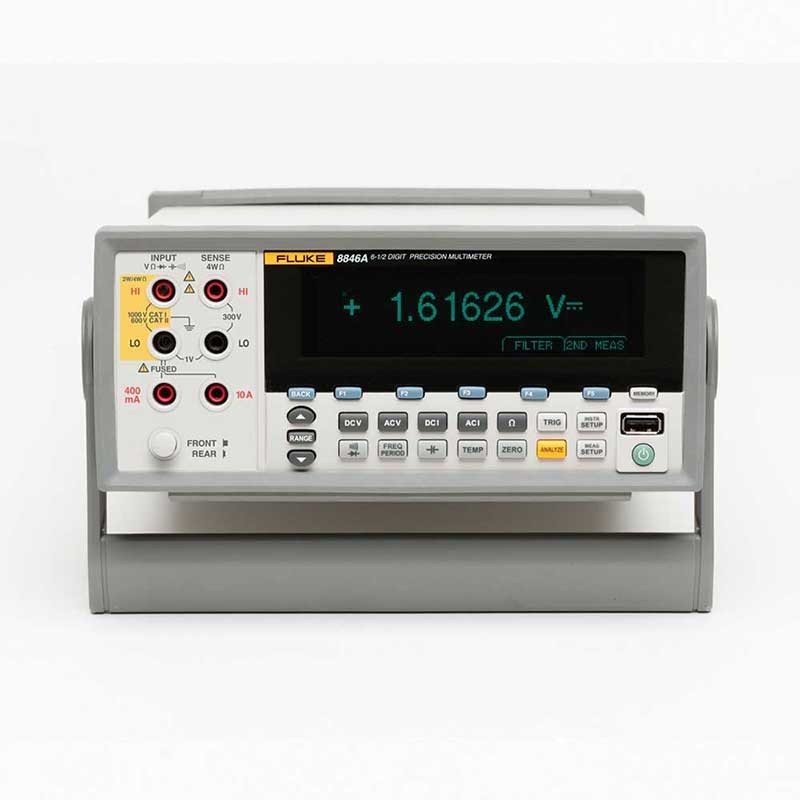

Fluke 8846A Calibration 8845A/8846A 6.5 Digit Multimeter

ManufacturerFluke (Calibration)(View more products from this manufacturer)

Model8846A

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Technical Specifications

Display

VFD Dot Matrix

Resolution

6.5 Digits

V DC

Ranges:	100 mV to 1000 V
Max. Resolution:	100 nV
Accuracy:	8845A: 0.0035 + 0.0005 (% measurement + % of range)
	8846A: 0.0024 + 0.0005 (% measurement + % of range)

V AC

Ranges:	8845A: 100 mV to 750 V
	8846A: 100 mV to 1000 V
Max. Resolution:	100 nV
Accuracy:	8845A: 0.06 + 0.03 (% measurement + % of range)
	8846A: 0.06 + 0.03 (% measurement + % of range)
Frequency:	3 Hz to 300 KHz

Resistance

2x4 Wire:	Yes
Ranges:	8845A: 100 Ω to 100 MΩ
	8846A: 10 Ω to 1 GΩ
Max. Resolution:	8845A: 100 μΩ
	8846A: 10 μΩ
Accuracy:	8845A: 0.010 + 0.001 (% measurement + % of range)
	8846A: 0.010 + 0.001 (% measurement + % of range)

A DC

Ranges:	100 μA to 10 A
Max. Resolution:	100 pA
Accuracy:	0.050 + 0.005 (% measurement + % of range)

A AC

Ranges:	8845A: 10 mA to 10 A
	8846A: 100 mA to 10 A
Max. Resolution:	8845A: 10 nA
	8846A: 100 pA
Accuracy:	0.10 + 0.04 (% measurement + % of range)
Frequency:	3 Hz to 10 kHz

Freq/Period

Ranges:	8845A: 3 Hz to 300 kHz
	8846A: 3 Hz to 1 MHz
Max. Resolution:	1 μHz
Accuracy:	0.01 %

Continuity/ Diode Test

Yes

Capacitance

Ranges:	8846A: 1 nF to 0.1 F
Max. Resolution:	8846A: 1 pf
Accuracy:	8846A: 1 %

Temperature

Type:	8846A: Platinum RTD
Ranges:	8846A: -200 °C to +600 °
Max. Resolution:	8846A: 0.01 °
Accuracy:	8846A: 0.06 °

Math Functions

	NULL, Min/Max/Average, Std Dev
dB/dBm:	Yes

Advanced Functions

Statistics/Histogram:	Yes
Trendplot:	Yes
Limit Test:	Yes

Input Output

USB Memory:	8846A: USB memory drive port
Real Time Clock:	8846A: Yes
Interfaces:	RS 232, IEE-488.2, Ethernet, USB (with optional adaptor)
Programming Languages/Modes:	8846A: SCPI (IEEE-488.2), Agilent 34401A, Fluke 45

General Specifications

Weight
