Display: 73.5 mm x 104 mm
Battery: 8 AA alkaline cells, IEC LR6
Dimensions (H x W x L): 184 mm x 211 mm x 93 mm
Weight: 1.3 kg
Temperature
Operating temperature: -10 °C to +50 °C
Storage temperature: -20 °C to +60 °C
Operating humidity:
Non-condensing (<10 °C)
≤80 % RH (10 °C to 30 °C)
≤50 % RH (30 °C to 50 °C)
Altitude
Operating altitude: 2000 m
Storage altitude: 12000 m
Insulation resistance testing
Test voltage
Range/ Resolution/ Accuracy:
250 V:
<200 kΩ/ Unspecified/ Unspecified
200 kΩ to 500 kΩ/ 1 kΩ/ 5 %
0.50 MΩ to 5.00 MΩ/ .01 MΩ/ 5 %
5.0 MΩ to 50.0 MΩ/ 0.1 MΩ/ 5 %
50 MΩ to 500 MΩ/ 1 MΩ/ 5 %
0.50 GΩ to 5.00 GΩ/ 0.01 GΩ/ 5 %
5.0 GΩ to 50.0 GΩ/ 0.1 GΩ/ 20 %
>50 GΩ/ Unspecified/ Unspecified
500 V:
<200 kΩ/ Unspecified/ Unspecified
200 kΩ to 500 kΩ/ 1 kΩ/ 5 %
0.50 MΩ to 5.00 MΩ/ .01 MΩ/ 5 %
5.0 MΩ to 50.0 MΩ/ 0.1 MΩ/ 5 %
50 MΩ to 500 MΩ/ 1 MΩ/ 5 %
0.50 GΩ to 5.00 GΩ/ 0.01 GΩ/ 5 %
5.0 GΩ to 10.0 GΩ/ 0.1 GΩ/ 5 %
10.0 GΩ to 50.0 GΩ/ 0.5 GΩ/ 20 %
50 GΩ to 100 GΩ/ 5 GΩ/ 20 %
>100 GΩ/ Unspecified/ Unspecified
1000 V
<200 kΩ/ Unspecified/ Unspecified
200 kΩ to 500 kΩ/ 1 kΩ/ 5 %
0.50 MΩ to 5.00 MΩ/ .01 MΩ/ 5 %
5.0 MΩ to 50.0 MΩ/ 0.1 MΩ/ 5 %
50 MΩ to 500 MΩ/ 1 MΩ/ 5 %
0.50 GΩ to 5.00 GΩ/ 0.01 GΩ/ 5 %
5.0 GΩ to 20.0 GΩ/ 0.1 GΩ/ 5 %
20.0 GΩ to 50.0 GΩ/ 0.5 GΩ/ 20 %
50 GΩ to 200 GΩ/ 5 GΩ/ 20 %
>200 GΩ/ Unspecified/ Unspecified
2500 V
<200 kΩ/ Unspecified/ Unspecified
200 kΩ to 500 kΩ/ 1 kΩ/ 5 %
0.50 MΩ to 5.00 MΩ/ 0.01 MΩ/ 5 %
5.0 MΩ to 50.0 MΩ/ 0.1 MΩ/ 5 %
50 MΩ to 500 MΩ/ 1 MΩ/ 5 %
0.50 GΩ to 5.00 GΩ/ 0.01 GΩ/ 5 %
5.0 GΩ to 50.0 GΩ/ 0.1 GΩ/ 5 %
50 GΩ to 500 GΩ/ 5 GΩ/ 20 %
>500 GΩ/ Unspecified/ Unspecified
Warning range: >30 V
Timer
Range: 0 to 99 min
Resolution: Setting: 1 min, Alert: 1 s
Short circuit current: >5 mA
ACV/DCV/resistance measurement
Range/ Resolution/ Accuracy ±(% rdg + dgt):
VAC: 0 V to 600.0 V/ 0.1 V/ ±(2 % +10) （45 Hz to 500 Hz）
VDC: 0 V to 600.0 V/ 0.1 V/ ±(2 % +10)
Resistance:
0 Ω to 600.0 Ω/ 0.1 Ω/ ±(2 % +10)
600 Ω to 6000 Ω/ 1 Ω/ ±(2 % +10)
6.00 kΩ to 60.00k Ω/ 0.01 kΩ/ ±(2 % +10)
Datasheet
Manual
Fast, accurate, reliable insulation testing in a portable lightweight package

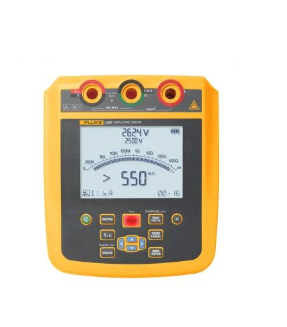

The Fluke 1535 and 1537 2,500 V Insulation Resistance Testers are engineered to simplify frontline troubleshooting whether you’re on the factory floor or working in the field at a solar installation. With user selectable test voltages from 250 V to 2,500 V and resistance measurements up to 500 GΩ these testers allow you to cover more workload with a single tool. Equipped with an intuitive user interface, a short circuit current of up to 5 mA and a CAT IV 600 V rating these portable high-voltage insulation testers can deliver rapid and stable resistance measurements no matter where you take them. The 1537 Insulation Resistance Tester also allows you to store measurements for later review or PC transfer, using the provided software.
