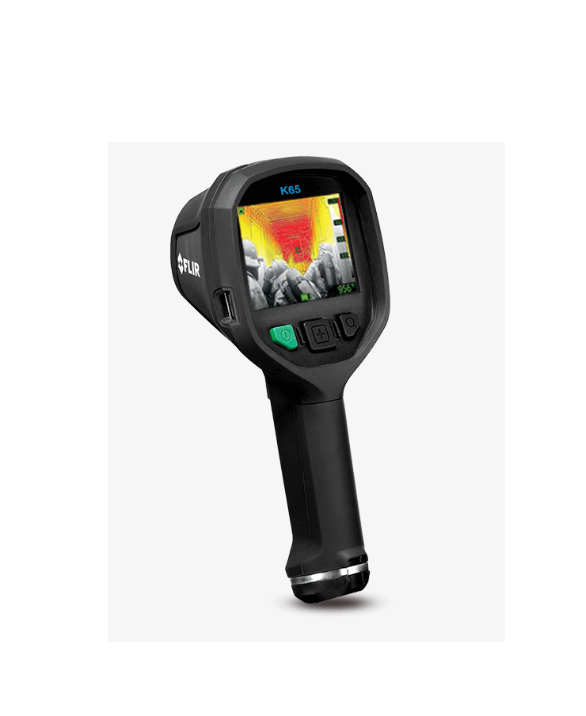

FLIR K65 Firefighting Cameras (320 × 240 pixels, –20°C ~ 650°C)

IR Resolution : 320 × 240 pixels

Display: 4 in. LCD, 320 × 240 pixels, backlit

Object Temperature Range: –20°C to 150°C (–4°F to 302°F) 0°C to 650°C (32°F to 1202°F)

Image Modes: IR image TI Basic fire-fighting mode Black-and-white fire-fighting mode Fire mode Search-and-rescue mode Heat detection mode Thumbnail gallery

Camera weight incl battery: 1.1 ±0.05 kg (2.4 ±0.1 lb.)

Camera size (L x W x H): 120 x 125 x 280 mm (4.7 x 4.9 x 11 in.)

Imaging & Optical

Contrast optimization: Digital image enhancement using FSX

Depth of Field: 0.84 m to infinity (33 in. to infinity)

Detector Type: Focal plane array (FPA), uncooled microbolometer (VOx)

Field of view (FOV): 51° × 38°

f-number: 1.25

Focal Length: 9 mm (0.35 in.)

Focus: Fixed

Image Frequency: 60 Hz

Image Modes: IR image TI Basic fire-fighting mode Black-and-white fire-fighting mode Fire mode Search-and-rescue mode Heat detection mode Thumbnail gallery

IR Resolution: 320 × 240 pixels

Non-radiometric IR video recording: MPEG-4 to internal flash memory

Non-radiometric IR video streaming: Uncompressed colorized video using USB

Pitch: 25 µm

Spatial resolution (IFOV): 2.8 mrad

Spectral Range: 7.5-13 µm

Storage Capacity: 200 files in total, with a maximum duration of 30 minutes. The total number of files is co-dependent on the number of saved images.

Thermal Sensitivity/NETD: <30 mK @ 30°C (86°F)

Zoom: 2× digital zoom

Environmental & Certifications

Compliance

•NFPA1801:2021

•Ex-certified according to ANSI/ISA 12.12.01-2015 and meets Class I Division 2 Groups C and D

•Class II Division 2 Groups F and G, Temperature Code T4/T135°C

Directives:

Certified according to NFPA 1801:2021 specification:

Vibration Impact acceleration resistance Corrosion

Viewing surface abrasion Heat resistance Heat and flame Product label durability

Drop: 2 m(6.6 ft.) on concrete floor (IEC 60068-2-31)

EMC: EN 61000-6-2:2005 (Immunity) EN 61000-6-3: 2011 (Emission) FCC 47 CFR Part 15 B (Emission)

Encapsulation: IP 67 (IEC 60529)

Humidity (Operating and Storage): IEC 60068-2-30/24 h 95% relative humidity 25°C to 40°C(77°F to 104°F)/ 2 cycles

Magnetic fields: EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment)

Operating Temperature Range: -20°C to 60°C (-4°F to 140°F): infinity

150°C (302°F): 15 min.

260°C (500°F): 5 min.

Relative Humidity: 95% relative humidity 25°C to 40°C (77°F to 104°F) non-condensing

Shock: 25 g (IEC 60068-2-27)

Storage Temperature Range: –40°C to 85°C(–40°F to 185°F)

Tripod Mounting: UNC 1/4"-20 (adapter needed)

Vibration: 2 g (IEC 60068-2-6)

Power

Battery capacity: 4.4 Ah, at 20°C to 25°C (68°F to 77°F)

Battery operating time: Approx. 4 hours at 25°C (77°F) ambient temperature and typical use. This operating time is independent of camera mode.

Battery Type: Li Ion

Battery voltage: 3.6 V

Battery weight: 0.152 kg(0.3 lb.)

Charging system: Battery is charged inside the camera 2-bay charger Optional In-truck charger

Charging Temperature: 0°C to 45°C (32°F to 113°F)

Charging Time: 2 h to 85% capacity, charging status indicated by LEDs

Power Management: Automatic shutdown and sleep mode

Safety [power supply]: CE/EN/UL/CSA/PSE 60950-1

Start Up Time: <17 s. (IR image, no GUI)

Start-up time from sleep mode: <4 s.

Measurement & Analysis

Accuracy: ±4°C (±7.2°F) or ±4% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F)

Auto Range: Yes, selectable on/off using FLIR Tools®

Automatic Hot Detection: Heat detection mode (the hottest 20% of the of scene is colorized)

Camera size (L x W x H): 120 x 125 x 280 mm (4.7 x 4.9 x 11 in.)

Camera weight incl battery: 1.1 ±0.05 kg (2.4 ±0.1 lb.)

Isotherm: Yes, according to NFPA

Object Temperature Range: –20°C to 150°C (–4°F to 302°F) 0°C to 650°C (32°F to 1202°F)

Set-up Commands: Local adaptation of units, date and time formats

Spot Meter: 1.0

General

Compatible with FLIR software: FLIR Tools®

Material: PPSU Silicon rubber Aluminium, cast Flame-resistant magnesium alloy

Packaging Size: 500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in)

User: Interface

Display: 4 in. LCD, 320 × 240 pixels, backlit

Languages: English

Report Generation: Separate software (FLIR Tools)

Communication & Data Storage

File Formats: Standard JPEG

Image Storage: Standard JPEG; Image freeze: configurable

Image Storage Capacity: 200 files in total the total number of files is co-dependent on the number of saved video clips.

Image Storage Mode: IR only

Interface: Update from PC devices Data transfer to and from PC

Storage Media: Internal flash memory

USB:USB Mini-B
