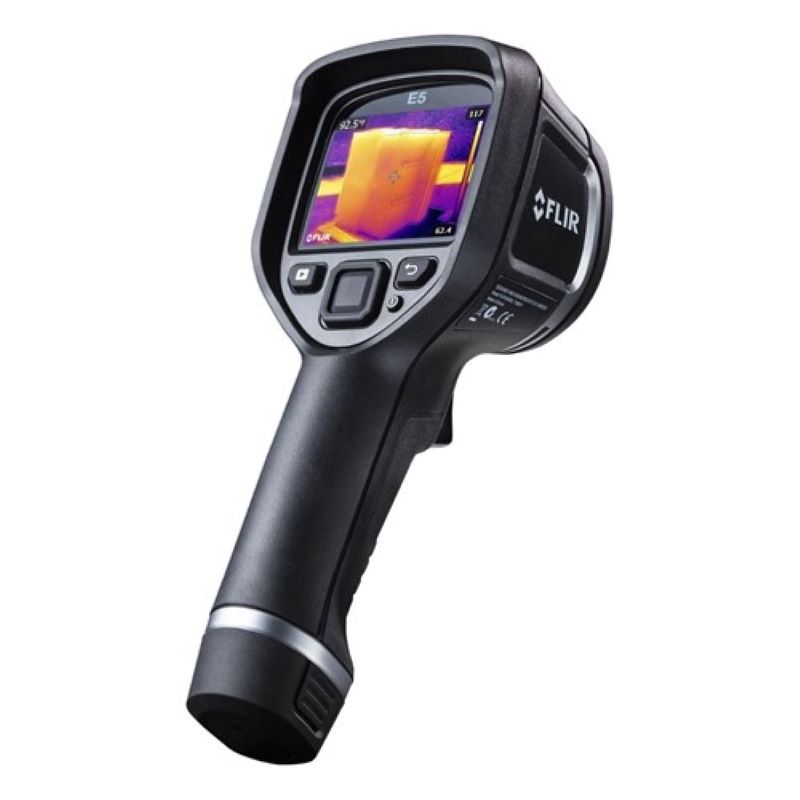

FLIR E5 thermal imaging camera (250 °C, 120 x 90 pixels, 6.9 mrad, realtime)

Name: FLIR E5 thermal imaging camera (250 °C, 120 x 90 pixels, 6.9 mrad, realtime)
Brand: FLIR

ManufacturerFLIR(View more products from this manufacturer)

ModelE5

OriginEstonia

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

IR resolution: 120 x 90 pixels
MSX resolution: 320 x 240 pixels
Thermal sensitivity: 0.10°C
Spatial resolution (IFOV): 6.9 mrad
Image modes: IR image, visual image, MSX®, thumbnail gallery
Field of view/min focus distance: 45º x 34º / 0.5 m
Spectral range: 7.5 - 13 µm
Image Frequency: 9 Hz
Focus: Focus free
Focal Plane Array (FPA): Uncooled microbolometer
Display: 3” 320 x 240 color LCD
Image adjustment: Automatic adjust/lock image
Object temperature range: -20°C to +250°C
Accuracy   ±2 °C or ±2% of reading , for ambient temperature 10°C to 35°C and object temperature above + 0°C
Spotmeter:Center spot
Emissivity correction: Variable from 0.1 to 1.0
Emissivity table: Emissivity table of predefined materials
Reflected apparent temperature correction: Automatic, based on input of reflected temperature
Color palettes: Iron, Rainbow and Black/White
Set-up commands: Local adaptation of units, language, date and time formats
Image storage capacity: Internal memory store at least 500 sets of images
Image storage mode:   Simultaneous storage of images in IR, visual and MSX
File formats: Standard JPEG - 14 bit measurement data included
Interfaces   USB Micro: Data transfer to and from PC and Mac device
Battery Type:Li-lon rechargeable
Battery voltage: 3.7 V
Dimensions: 244 x 95 x 140 mm
Weight: 575 g, including battery
Shipping size: 303 x 206 x 128 mm
Shipping weight: 2.7 kg
Standard package: FLIR thermal imaging camera, hard transport case, printed documentation, battery, power supply/charger with EU, UK, US and Australian plugs, USB cable

Datasheet

Camera specific

	FLIR E4	FLIR E5	FLIR E6	FLIR E8
IR resolution	80 x 60 pixels	120 x 90 pixels	160 x 120 pixels	320 x 240 pixels
MSX resolution	320 x 240 pixels	320 x 240 pixels	320 x 240 pixels	320 x 240 pixels
Thermal sensitivity	0.15°C	0.10°C	0.06°C	0.06°C
Spatial resolution (IFOV)	10.3 mrad	6.9 mrad	5.2 mrad	2.6 mrad
Image modes	IR image, visual image, MSX®, thumbnail gallery	IR image, visual image, MSX®, thumbnail gallery	IR image, visual image, MSX®, picture in picture, thumbnail gallery	IR image, visual image, MSX®, picture in picture, thumbnail gallery
Color alarm	NA	NA	Blue below or red above set temperature	Blue below or red above set temperature

General

Imaging performance
Field of view/min focus distance	45º x 34º / 0.5 m
Spectral range	7.5 - 13 µm
Image Frequency	9 Hz
Focus	Focus free
Focal Plane Array (FPA)	Uncooled microbolometer

Image Presentation
Display	3” 320 x 240 color LCD
Image adjustment	Automatic adjust/lock image

Measurement
Object temperature range	-20°C to +250°C
Accuracy	±2 °C or ±2% of reading , for ambient temperature 10°C to 35°C and object temperature above + 0°C

Measurement analysis
Spotmeter	Center spot
Emissivity correction	Variable from 0.1 to 1.0
Emissivity table	Emissivity table of predefined materials
Reflected apparent temperature correction	Automatic, based on input of reflected temperature

Setup
Color palettes	Iron, Rainbow and Black/White
Set-up commands	Local adaptation of units, language, date and time formats

Image Storage
Image storage capacity	Internal memory store at least 500 sets of images
Image storage mode	Simultaneous storage of images in IR, visual and MSX
File formats	Standard JPEG - 14 bit measurement data included

Data communication interfaces
Interfaces	USB Micro: Data transfer to and from PC and Mac device

Power system
Battery Type	Li-lon rechargeable
Battery voltage	3.7 V
Battery operating time	Approx. 4 hours at +25ºC ambient temperature and typical use
Charging system	Battery is charged inside the camera or in specific charger
Charging time	2.5 hours to 90% capacity in camera. 2 hours in charger
Power management	Automatic shutdown
AC operation	AC adapter, 90-260 VAC input, 5 VDC output to camera

Environmental specifications
Operating temperature range	-15°C to +50°C
Storage temperature range	-40°C to +70°C
Humidity	IEC 60068-2-30/24 h 95% relative humidity
EMC	• WEEE 2012/19/EC • RoHs 2011/65/EC • C-Tick • EN 61000-6-3 • EN 61000-6-2 • FCC 47 CFR Part 15 Class B
Bump	25 g, IEC 60068-2-29
Drop	2 m
Vibration	2 g, IEC 60068-2-6

Physical characteristics
Dimensions	244 x 95 x 140 mm
Weight	575 g, including battery
Shipping size	303 x 206 x 128 mm
Shipping weight	2.7 kg (FLIR E8: 2.95 kg)

Standard package
FLIR thermal imaging camera, hard transport case, FLIR Tools™ download card, user documentation CD-ROM, printed documentation, battery (FLIR E8 2X), power supply/charger with EU, UK, US and Australian plugs, USB cable, battery charger (FLIR E8 only)
