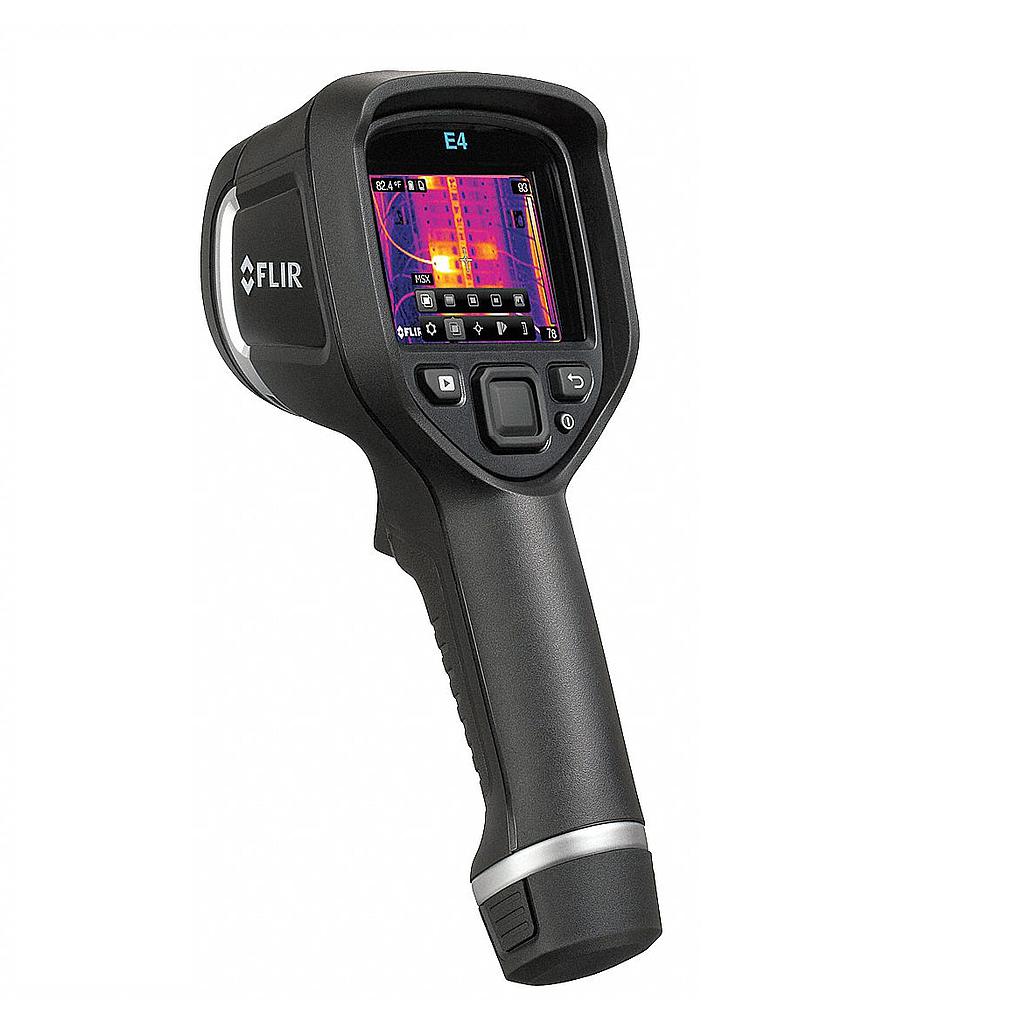

FLIR E4 thermal imaging cameras (250 °C, 80 x 60 pixels, 10.3 mrad, realtime)

IR resolution: 80 x 60 pixels
MSX resolution: 320 x 240 pixels
Thermal sensitivity: 0.15°C
Spatial resolution (IFOV): 10.3 mrad Image modes: IR image, visual image, MSX®, thumbnail gallery
Field of view/min focus distance: 45º x 34º / 0.5 m
Spectral range: 7.5 - 13 µm
Image Frequency: 9 Hz
Focus: Focus free
Focal Plane Array (FPA): Uncooled microbolometer
Display: 3” 320 x 240 color LCD
Image adjustment: Automatic adjust/lock image
Object temperature range: -20°C to +250°C
Accuracy ±2 °C or ±2% of reading , for ambient temperature 10°C to 35°C and object temperature above + 0°C
Spotmeter:Center spot
Emissivity correction: Variable from 0.1 to 1.0
Emissivity table: Emissivity table of predefined materials
Reflected apparent temperature correction: Automatic, based on input of reflected temperature
Color palettes: Iron, Rainbow and Black/White
Set-up commands: Local adaptation of units, language, date and time formats
Image storage capacity: Internal memory store at least 500 sets of images
Image storage mode: Simultaneous storage of images in IR, visual and MSX
File formats: Standard JPEG - 14 bit measurement data included
Interfaces USB Micro: Data transfer to and from PC and Mac device
Battery Type:Li-lon rechargeable
Battery voltage: 3.7 V
Dimensions: 244 x 95 x 140 mm
Weight: 575 g, including battery
Shipping size: 303 x 206 x 128 mm
Shipping weight: 2.7 kg
