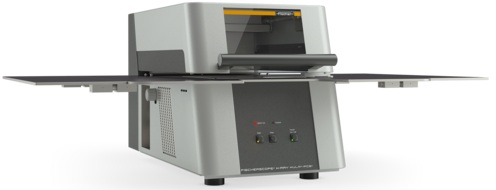

Robust entry-level instrument for simple measurements of components and structures on printed circuit boards
Measuring distance 0 … 27,5 mm
Smallest measurement spot: approx. Ø 0.2 mm
Microfocus tube with tungsten anode
Fixed aperture
Fixed filter
Fixed sample support
Max. sample size 610 x 610 mm (24 x 24 in) with extension
Max. sample weight 5 kg (11 lb)
Max. sample height 90 mm (3.5 in)
Proportional counter tube detector for short measuring times and small measuring spot
Fully protected instrument with type approval according to current radiation protection legislation
Applications
Electroplated, galvanized coatings such as zinc on iron as corrosion protection
Serial testing of mass-produced parts
Analysis of the composition of special steels, e.g. detection of molybdenum in A4
Decorative chrome coatings, e.g. Cr/Ni/Cu/ABS
All typical chrome coatings – also new ones such as CrVI
Measurement of functional gold coatings on printed circuit boards such as Au/Ni/Cu/PCB or Sn/Cu/PCB
Coatings on connectors and contacts in the electronics industry such as Au/Ni/Cu and Sn/Ni/Cu
