Cycle Mode: Forced convection
Function:
Temp. range: RT+5-120℃
Temp. Resolution Ratio: 0.1℃
Temp. Motion: ±1℃
Temp. Uniformity: ±1.0℃
Structure
Inner Chamber: Mirror Stainless Steel
Outer Shell: Cold rolling steel electrostatic spraying exterior
Insulation layer: High quaility foam board
Heater: Stainless steel electric heating tube
Power rating: 0.7kW
Exhaust hole: φ35mm top( with function of test hole)
Controller
Temp control mode: Two temperature section intelligent PID
Temp. setting mode: Touch button setting
Temp. display mode: Measuring temperature: LCD upper screen; setting temperature: the lower row
Timer: 0-9999min(with timing wait function)
Operation function: Fixed temperature operation, timing function, auto stop.
Additional function
Digital Independent temp.limiter.4 grades 3 speed ajustable speed fan (230 without fan speed adjuor)
Sensor deviation correction,temperature overshoot self-tuning,internal parameter locking,power-off parameter memory
Sensor: pt100
Safety device: Over temp. sound-light alarm, digital independent temp, limiter
Specification
Inner Chamber size(W*L*H)(mm): 400*360*450
Exterior size (W*L*H)(mm): 550*550*840
Volume: 65L
Shelf number: 8
Load per rack: 15kg
Shelf space: 40mm
Current rating: 220V/3.2A
Shelf fame: 4
Shelf: 2
Optional accessories: Shelf, U-disk storage, Printer, 3.5 inch color touch screen temperature controller

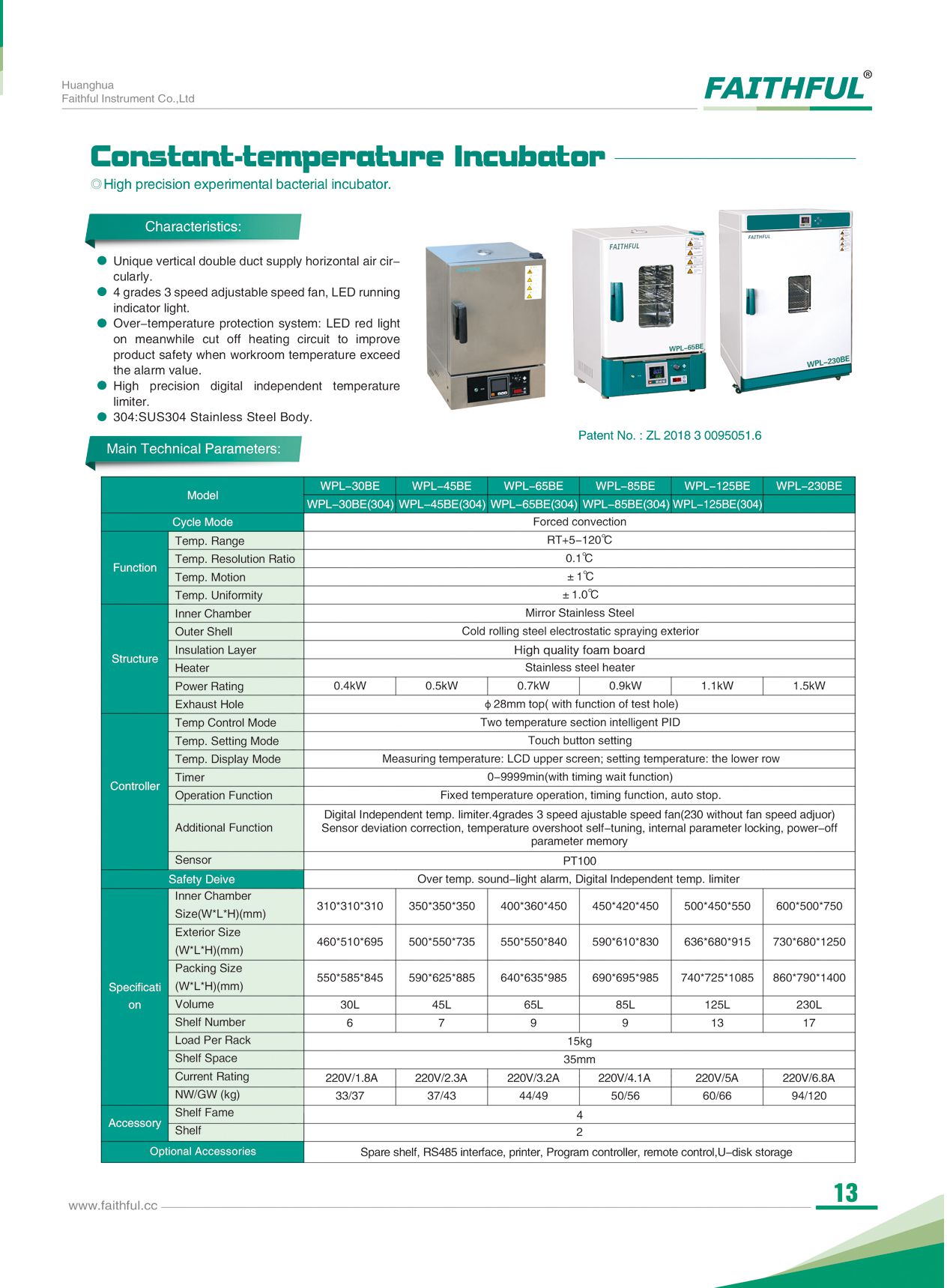

Datasheet
