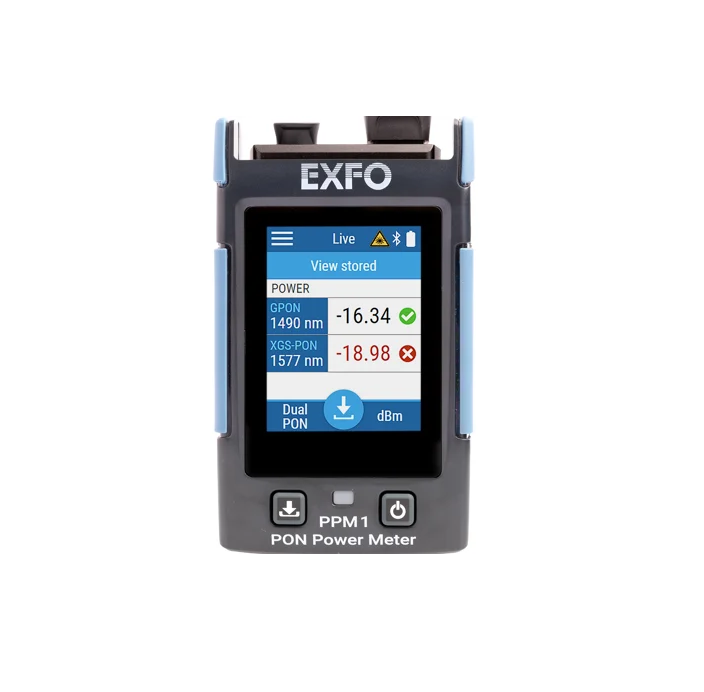

EXFO PPM1-D Service Activation Pon Power Meter (1490, 1550, 1577 nm)

Spectral passband (nm) : 1490 ±10, 1550 ±10, 1577 ±10

Calibrated wavelengths (nm) : 1490, 1550, 1577

Power measurement range (dBm): 15 to –45

Power uncertainty (dB) : 0.5

ORL (dB) : 55

Visual fault locator: No

Dedicated live tone detection  : Yes

GENERAL SPECIFICATIONS

Dimension: 133 mm x 78 mm x 30 mm (5 ¼ in x 3 in x 1 1/8 in)

Display size: 71 mm (2.8 in)

Weight (with battery): 225 g (0.5 lb)

Display type: Color display with capacitive touchscreen

Interface languages: Chinese (Simplified and Traditional), English, French, German, Spanish, Italian

Battery charging: < 2h when unit is off ; USB type C charging port connector; AC/DC charger/adapter input: 100 - 240 V; 50/60 Hz; 1.0 A max, output: 5 V; 2 A

Battery autonomy: 10 h (continuous use at brightness 50%, BLE: ON, AUTO: OFF)

Interfaces: Bluetooth 5.0 with BLE; USB type C

Storage capacity: 1000 test results for local reading

Temperature

Storage: –40 °C to 70 °C (–40 °F to 158 °F)

Operating: –10 °C to 50 °C (14 °F to 122 °F)
