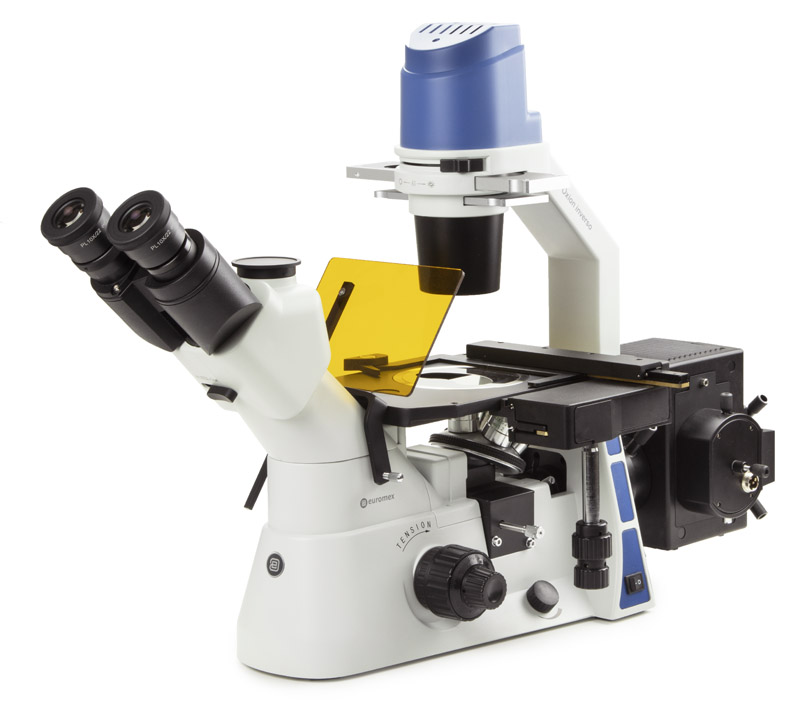

Pair HWF 10x/22 mm eyepieces
Trinocular head, 45° inclined tubes. Tubes can be positioned in upper or lower positions
Interpupillary distance 54-75 mm. Diopter adjustment on left eyepiece
Reversed quintuple revolving nosepiece on ball-bearings
Plan Fluarex 10x and plan phase Fluarex PLPH 20x, S40x IOS infinity corrected objectives
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
250 x 230 mm stage with 120 x 78 mm mechanical stage
Supplied with glass insert with 30 mm hole, a metallic insert with 25 mm hole, a metallic insert for 35 mm diameter Petri dish holder, a 76x26 mm slide holder with 54mm Petri dish holder and a Multiwell holder with 65 mm Petri dish holder
Coaxial coarse and fine adjustments. Precision 2 μm, 0.2 mm per rotation. Total travel approximately 25 mm
N.A. 0.30 condenser with iris diaphragm and filter holder, working distance 72 mm
Supplied with slider with phase contrast annuli and green filter
Transmitted 100 W mercury vapor fluorescence and 5 W NeoLED™ brightfield/phase contrast illumination with internal power supply 100-240 V (CE) and UV protection shield
Supplied with 2 filter blocks with standard filter sets:
- Blue: EX465-495 DM505LP EM515-558,
- Green: EX500-580 DM600LP EM605-665
Supplied with power cord and transportation box
