Technical Specifications

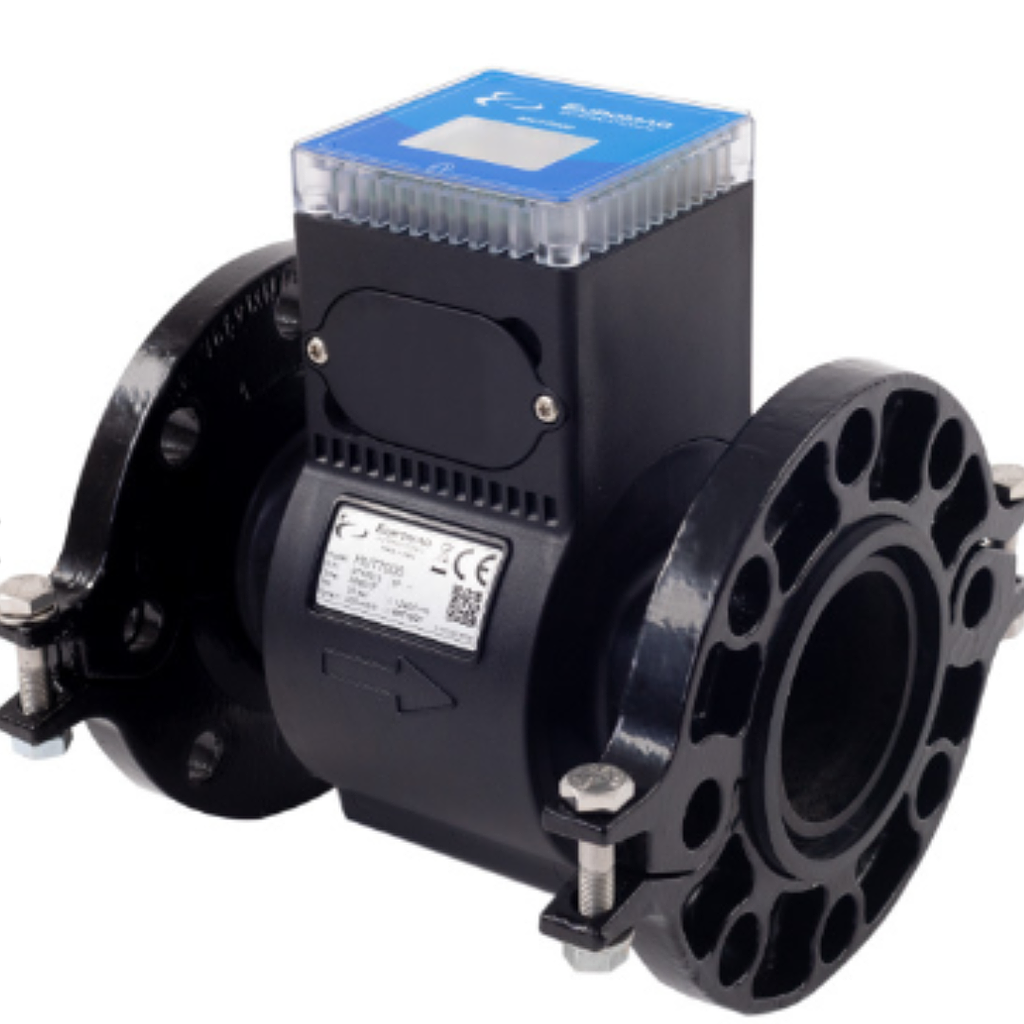

Structure: Integral Flow meter
DN Range: DN50/2’’ ÷ DN150/6’’
Nominal Pressure: 16 bar
Process Connection Victaulic: OGS
Fluid Conductivity: > 20 uS/cm
Process Temperature Range: 0 ÷ 80°C (32 ÷ 176°F)
Materials in contact with water Flow tube: Glass fibre reinforced polyamide Electrodes: AISI316L
Mains power supply: 12Vdc (10.8 ÷ 13.2V)
Power supply Battery powered [estimated useful life: up to 10 years]: 3.6 V
Consumption: 0,25W ÷ 1W( Mains powered)
Uscite I/O 2 passive outputs (1 programmable), SSR Type (dry contact), galvanically insulated
Max load +/- 35VDC, 100 mA protected against short circuits, minimum pulse duration 5ms.
Serial communications: RS 485 - MODBUS RTU
Display: LCD Segment Display, with dedicated status icons, 8+6 digits
User Interface: Magnetic reed / Bluetooth Mobile App / Euromag Link Software
Process memory: 100,000 data lines programmable frequency 1 ÷ 120 minutes (15 minutes factory standard)
Metrological certificate OIML R49-1:2013 / MID 2014/32/EU - Class 2
Temperature range
Ambient: -20 ÷ 60° C (-4 ÷ + 140°F)
Process: 0÷80°C (32÷176°F)
Storage:-40÷ 70°C (-40÷+158 °F)
Technical units: m, m3, I, ML, ft3, gal
Totalizers: 5 (2 positive, 2 negative, 1 NET)
Alarms and status icons: Status icons displayed and alarms recorded in the data logger
Self diagnostic: excitation failure, excessive ambient temperature, wet electronic board, low battery level,
pulses overlapping, Bluetooth communication error, emty pipe, measurement error
Software for communication and programming: Bluetooth Mobile App, Euromag Link Software (trough Bluetooth dongle, or RS485 interface)
Data protection: Customizable password protection, 3 partition EEPROM Memory for safe data storage, backup and FW update
