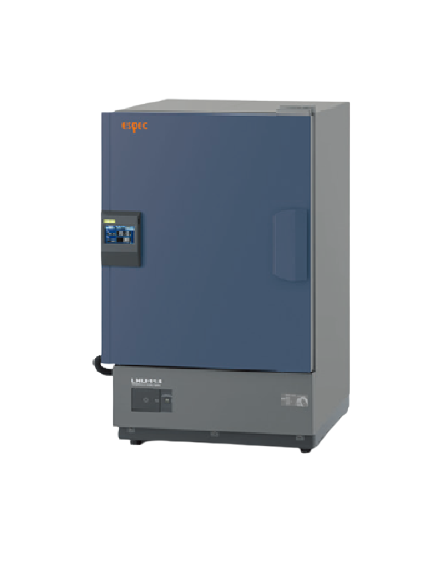

System: Balanced Temperature & Humidity Control system (BTHC system)
Performance:
Temp. (& humid.) control range: –20 to +85°C (–4 to +185°F)
40 to 95%rh
Fittings: Drain port filter (×2), cable port I.D. ø25 mm on left side, power cable (with 3-pole plug), drain socket, drain hose (except LU), Ethernet port (LAN), USB memory port
Capacity: 105 L
Inside dimensions mm: W500 x H600 x D390
Outside dimensions mm: W680 x H1090 x D826
Weight: 100 kg
Utility requirements:
Allowable ambient conditions: Ambient temperature 0 to +40°C (+32 to +104°F) up to 75%rh
Power supply: 220V AC 1ø 50/60Hz (CE): 7 A
230V AC 1ø 50/60Hz (CE): 6.5 A
Water supply rate for humidifying tray:
40 to 70 ml/ h (at condition +60°C / 95%rh)
100 to 130 ml/ h (at condition +85°C / 95%rh)
ACCESSORIES
• Shelf (stainless steel wire): 2
• Shelf bracket (18-8 Cr-Ni stainless steel plate): 2 sets
• Cable port rubber plug: 1 (I.D. ø25 mm)
• Water supply/drainage hose (with plug; except LU): 1
• Wet-bulb wick (24 pcs; except LU): box
• Cartridge fuse: 1
• Breaker handle cover: 1
• Stylus pen: 1
• Operation manual: 1
