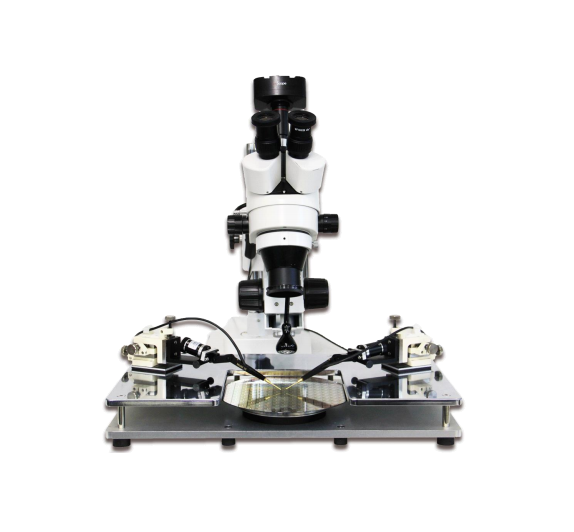

ES62X-CMPS-TSM Trinocular Stereo Microscope
• Magnification range: 3.5x - 90x
• Zoom objective power: 0.7x - 4.5x
• Eyepieces (DIN, 30mm): WH10x20mm dB
• Trinocular port: C-Mount or 23mm dB
• Field of view: 2-1/2 inch
• Optical working distance: Up to 8 inch
• Microscope stand: Double-arm boom stand
• Head movement: X-, Y-, and Z-axes
• Illumination type: Episcopic (reflected)
• Light source: LED ring light with rheostat mm
• Power: 110 - 240 V
• Dimensions: 540 x 480 x 460 mm
• Weight: 25 kg
ES62X-CMPS-WPS Wafer Probe Station
• Wafer Chuck diameter: 170 mm up to 300 mm
• Wafer Chuck Material: Stainless Steel
• Wafer Chuck Bias: 4 mm connector
• Dimensions: 500 X 300 X 100 mm
• Weight: About 14 kg
ES62X-CMPS-MVP Miniature Vacuum Pump
• Attainable Vacuum: -333 mbar
• Free Air Displacement: 7 l/min
• Inlet O.D.: 6 mm
• Outlet O.D.: 6 mm
• Rated Voltage: 120 VAC
• Power Consumption: 14 W
• Life Expectancy: 3000 h
• Dimensions: 90 X 90 X 100 mm
• Weight: 1 kg
ES62X-CMPS-PCB Magnetic Flexible PCB Holder for Probe Station
• Max PCB size: 180 X 130 X 2 mm
• Dimensions: 215 X 180 X 100 mm
• Weight: About 14 kg
