- AC power source：
Amplitude range: 6×（0-30A） Precision: 0.5%
6 phase current paralleled max. output: 180A
Phase current long term allowable working value: 10A
Power: 300VA/phase
6 phase paralleled max. power: 900VA
6 phase paralleled allowable max. output duty: 10s
Frequency range： 0--1000Hz, Accuracy：0.001Hz
Harmonic order： 2—20 times Phase position： 0--360°, Precision：0.1°
- DC voltage source：
Amplitude： 20A/phase
Power: 300VA/phase
Accuracy: 0.005
- AC voltage source：
Amplitude range: 6 ×（0--125V）, Precision: 0.5%
Line voltage range: 0--250V
Phase voltage/Line voltage output power: 70VA/100VA
Frequency range: 0--1000Hz, Precision: 0.001Hz
Harmonic order: 2—20 times Phase position： 0--360°, Precision：0.1°
- DC voltage source:
Phase voltage output amplitude: 0--±150V, Precision：0.5%
Line voltage output amplitude: 0--±300V
Phase voltage/Line voltage output power： 90VA/180VA
- Switching value terminal:
Switching value input terminal: 8 pairs
Idle contact: 1--20mA, 24V inner source
Potential switching: 0--6VDC is low level; 15--250VDCis high level
Switching value output terminal: 4 pairs, empty contacts, blocking capacity: 110V/2A, 220V/1A
- Time measuring range:
Range: 1ms~9999s
Precision: 0.1ms
Power supply: AC220V±10%, 50Hz 10A
Dimension: 455 (mm)×530 (mm)×220 (mm)
Weight: 30kg
General Information:

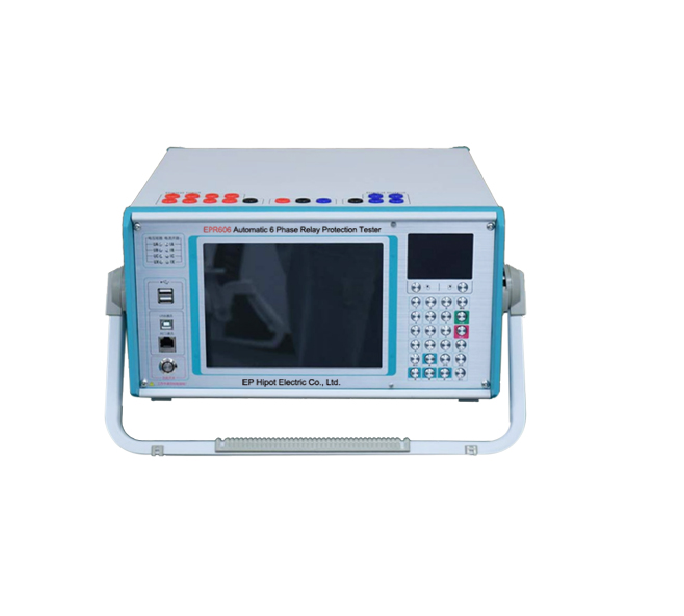

Protection systems play a key role for the safe and reliable operation of today’s electricity power systems. Properly working protection devices help to maintain the safety of the system and to safeguard assets from damage. EPRP-606 Relay Protection Tester is the essential test tool for relay protection technicians.
Features:
♦ To meet all the test requirements. 6 phase current and 6 phase voltage output simultaneously. Current 30A/phase, voltage 125V/phase. 6 phase current paralleled can reached to 180A. It’s not only can test on traditional relays and protection devices, but also can test on various microcomputer protection, especially better test for transformer differential protection and automatic bus transfer device.
♦ Can run independently, high performance IPC, Window XP system. It also can be outside connected with computer.
♦ Stainless steel panel and keyboard, touch type mouse.
♦ 8.4 inch TFT true color screen.
♦ High fidelity linear power amplifier, to ensure small current’s precision, and large current’s stability.
♦ USB port, to connect with PC directly.
♦ To be connected with laptop easily.
♦ GPS synchronous test function. Build-in GPS card (option), to be connected with PC via RS232 port. To realize two testers can test synchronously even at the different site.
♦ Equipped with independent special auxiliary DC voltage source, output voltage is 110V (1A), 220V (0.6A). To provide DC working power supply for relay or protection devices.
♦ Self calibration.
