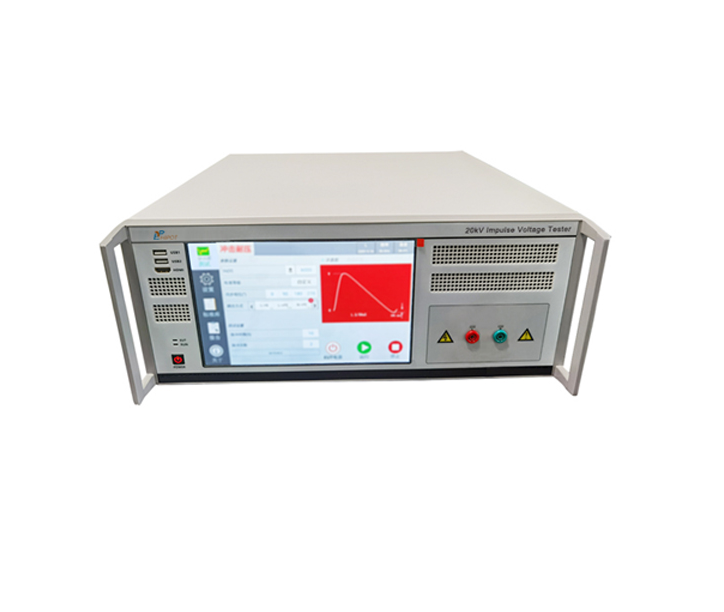

EPHIPOT EPDY-A20 Portable Impulse Voltage Tester (0.1 ~ 20kV)

Output voltage range: 0.1~20kV

Step voltage: 0.1~2kV free setting

Output voltage accuracy: ＜±5%

Output voltage polarity: Positive, negative, alternating positive and negative, alternating negative and positive

Output waveform: Surge composite wave

Open circuit voltage wave: Leading edge: 1.2us±30% Pulse width: 50us±20%

impedance: 500Ω

Coupling method: Direct coupling

Pulse interval time: 7~600S adjustable (according to pulse voltage range)

Number of pulses: 1~9999 times

Trigger method: Automatic, manual, external trigger

operating system: Android

screen: 1280×800LCD color LCD touch display, support 10-point touch

Other interfaces: HDMI, RS485, USB, etc.

Operation environment: Temperature: 10℃~40℃, humidity: 30%~70%

Power supply: AC: 100~250V@50Hz/60Hz

Dimensions: 4U/19"

Weight: 10kg

General Information:

EPDY-A 20kV Impulse Voltage Tester is mainly used for the insulation performance test of the product to evaluate the ability of the product to withstand voltage shocks. It is suitable for the insulation performance test of various electronic and electrical products (such as electric energy meters, household appliances, low-voltage electrical appliances and power motors). Compliant with standards: IEC60060-1, -2, IEC61010.

Features:

-Impulse voltage range 0.1~20KV

-Using high-speed electronic switch technology, smooth waveform and accurate output

-Using Android control system, equipped with 10-inch high-definition capacitive touch screen

-Built-in standard library, recall can be set according to standard level

-For each surge output, the output voltage and current waveforms are displayed on the screen in real time.

-It supports the judgment of the sample state after the surge voltage impact, and provides a buzzer alarm

-Mature and reliable technology, stable equipment performance and durability.

-After the surge voltage impact, support the failure judgment of the sample

-Integrated design, small size and portable.

-The voltage and current are displayed on the screen in real time, and the peak value of voltage and current is marked.

-Support USB report printing, templates can be edited.
