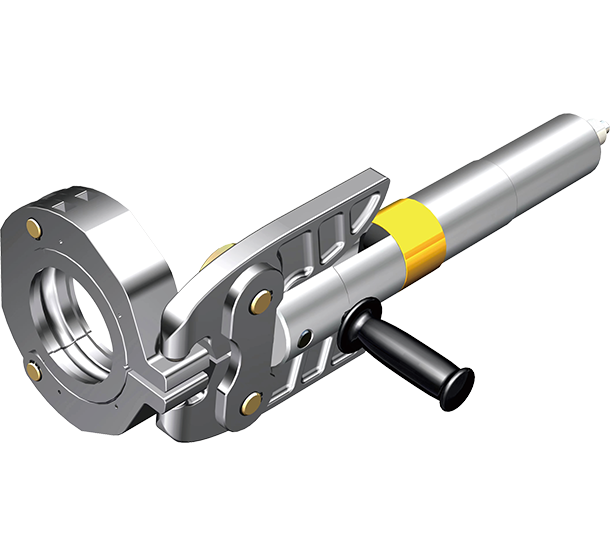

EMEADS SC-15100 Split Hydraulic Pipe Clamping Tool (12-108mm (1/2"-4"),40 KN)

TECHNICAL DATA:

Compression range: 12-54mm (1/2"-2"), 12-108mm (1/2"-4") Thin-wall stainless steel pipe,Plastic pipe, aluminum plastic composite pipe, copper pipe

Note: Different pipe type and material, compression range will change, should be based on the specific supporting pipe

Rated output: 40 KN (Piston output)

Stroke: 95mm

Oil capacity: 250ml

Time consumption of single clamping: 3-8s (According to the diameter of the pipe fitting)

Tool dimensions: 525x318x86 mm

Weight: 1.5kg

ACCESSORIES:

Mold configuration: 15,20,25,32,40,50,65,80,100mm
